Product Pictures:
Description :

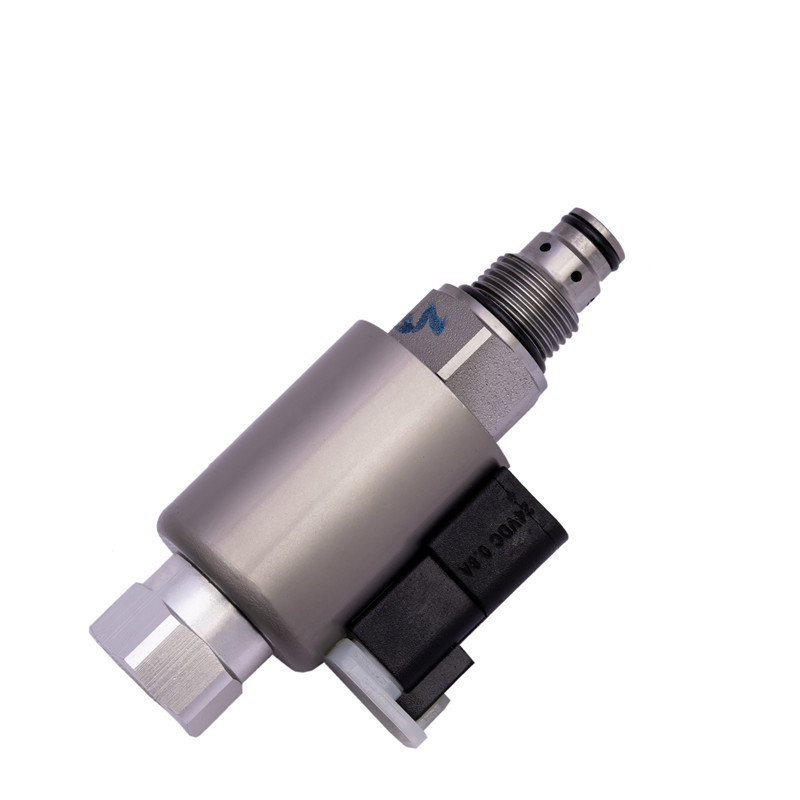

KTS38-21-0-N Hydraulic solenoid valve customized porportional relief valve
Description :
Threaded plug-in, single stage, seat valve pressure relief valve, utilizing variable electric
Input can achieve continuous adjustment within the specified range. Output pressure and DC
The current input is inversely proportional.
Working principle:
KTS38-21 blocks the flow from ① to ② until the oil port ①
Obtain sufficient pressure to counteract the spring preload. In the absence of current below,the overflow pressure is ± 50 psi of the maximum spring pressure. Electricity in the coil,Flow reduces the spring force, thereby reducing the valve setting value
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
