Product Pictures:

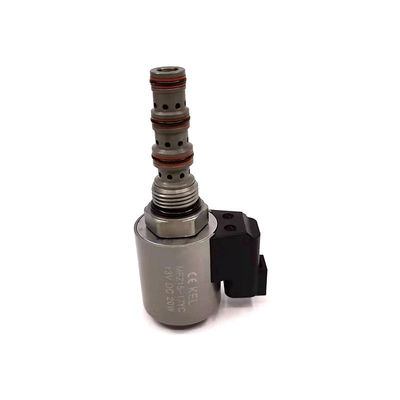

Description: Electromagnetic drive, 4-way, direct acting spool type, hydraulic threaded directional valve.
Working principle:
When power is cut off, KSV08-40L-0-N allows oil to flow from ③ to ② and from ④ to ①. After being powered
on, the valve core moves, thereby connecting ③ flow direction ④ and ② flow direction ①. All oil ports are
connected during the reversing process. Manual control option operation method: To perform emergency
operation, please press the button, rotate it counterclockwise 180 °, and then release it. The built-in spring will push
the button out. At this position, the valve may only partially move. To ensure complete emergency movement, pull
the button to its maximum travel and hold it in this position. To restore normal valve function, press the button and
rotate 180 ° clockwise before releasing. The emergency manual control option will be locked in this position
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
