KTS38-21-0-N Hydraforce 2 Way Proportional Solenoid Valve Overflow Pressure Reducing Valve

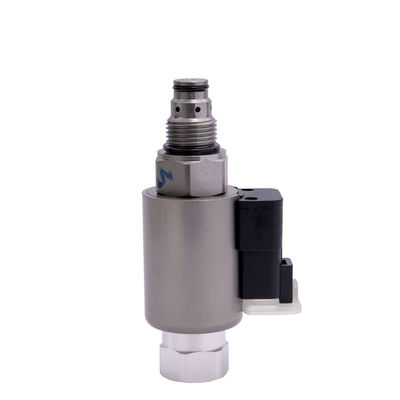

Product Pictures:

Description :

KTS38-21-0-N 2-2 pressure reducing valve 2 way 2 Hydraforce Inverse proportional overflow valve for pilot control valve

Threaded plug-in, single stage, seat valve pressure relief valve, utilizing variable electric
Input can achieve continuous adjustment within the specified range. Output pressure and DC
The current input is inversely proportional.

Working principle:
KTS38-21 blocks the flow from ① to ② until the oil port ①
Obtain sufficient pressure to counteract the spring preload. In the absence of current below,the overflow pressure is ± 50 psi of the maximum spring pressure. Electricity in the coil,Flow reduces the spring force, thereby reducing the valve setting value

Characteristics:
The valve core adopts a return oil buffer structure
Stable pressure and no shaking or abnormal noise during proportional overflow process
Engineering coil, internal waterproof grade IP67K
High repetition accuracy
The impact of coil temperature rise on pressure output will not exceed 6%
The sealing ring adopts an integrated retaining ring, suitable for repeated disassembly and high pressure resistance

Product Feature:
The cavity is interchangeable with HydraForce,the internal structure is different.
Product features:
Use domestic standard proportional coils and magnetic core tubes.
Shortening the development period and enable performance quality the same with Hydraforce

Product technical data:

Product real pictures :
