Product Pictures:
Description :
KL7102107ER13ER steel iron valve body with pressure 250bar solenoid valve 2 position 6 way electrical hydraulic valve
Technical Parameters:
1. Rated pressure: 250Bar, rated flow: 25L/Min;
2. Solenoid valve voltage: DC27V±15%, Plug type: DT04-2P;waterproof level:IP69
3. Electromagnet power: 25W;
4. Operating temperature range: -20°C-+90°C;
5. Use cleanliness range: within NAS9 level;
6. All external threaded interfaces: G1/4 DIN 3852.
Product technical data:

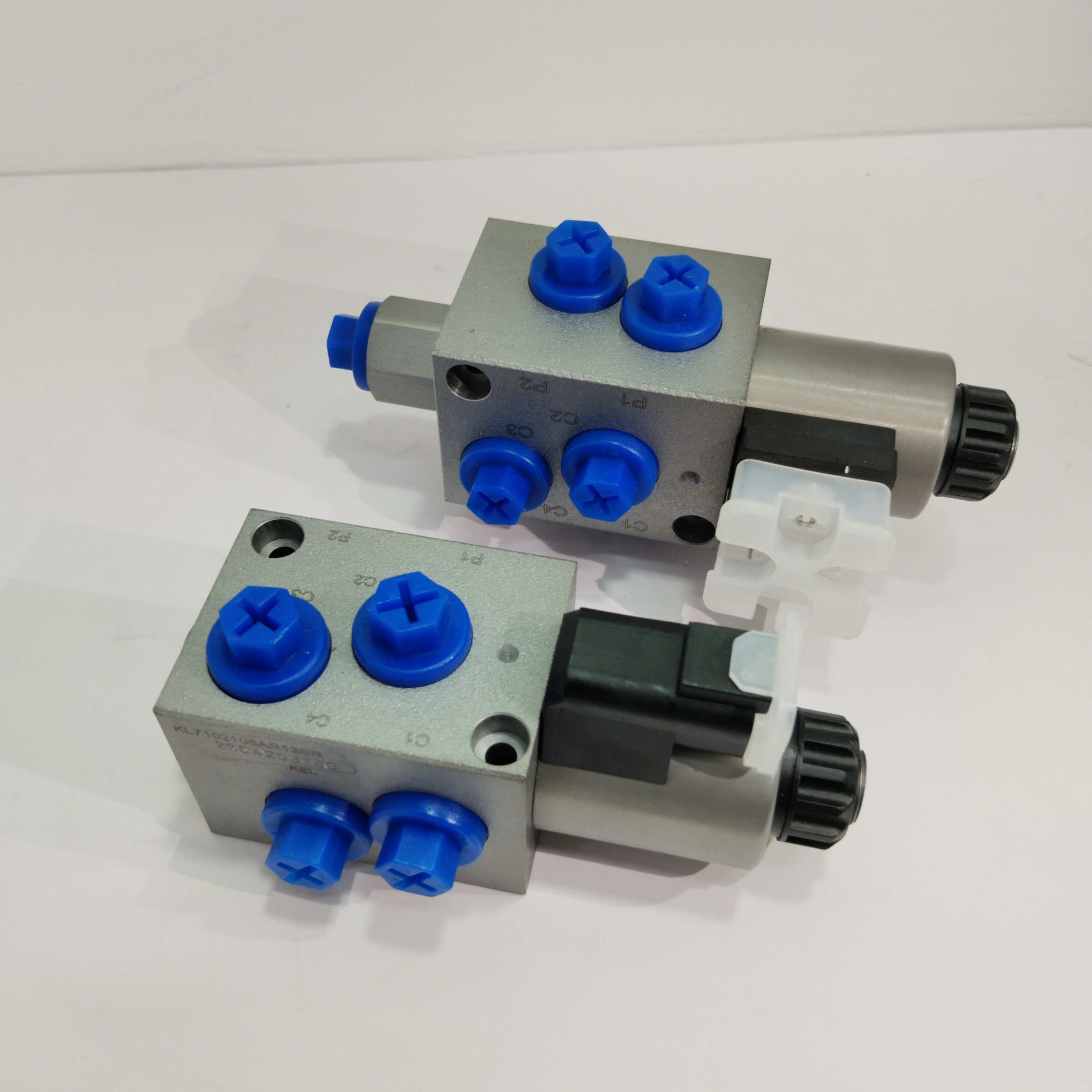

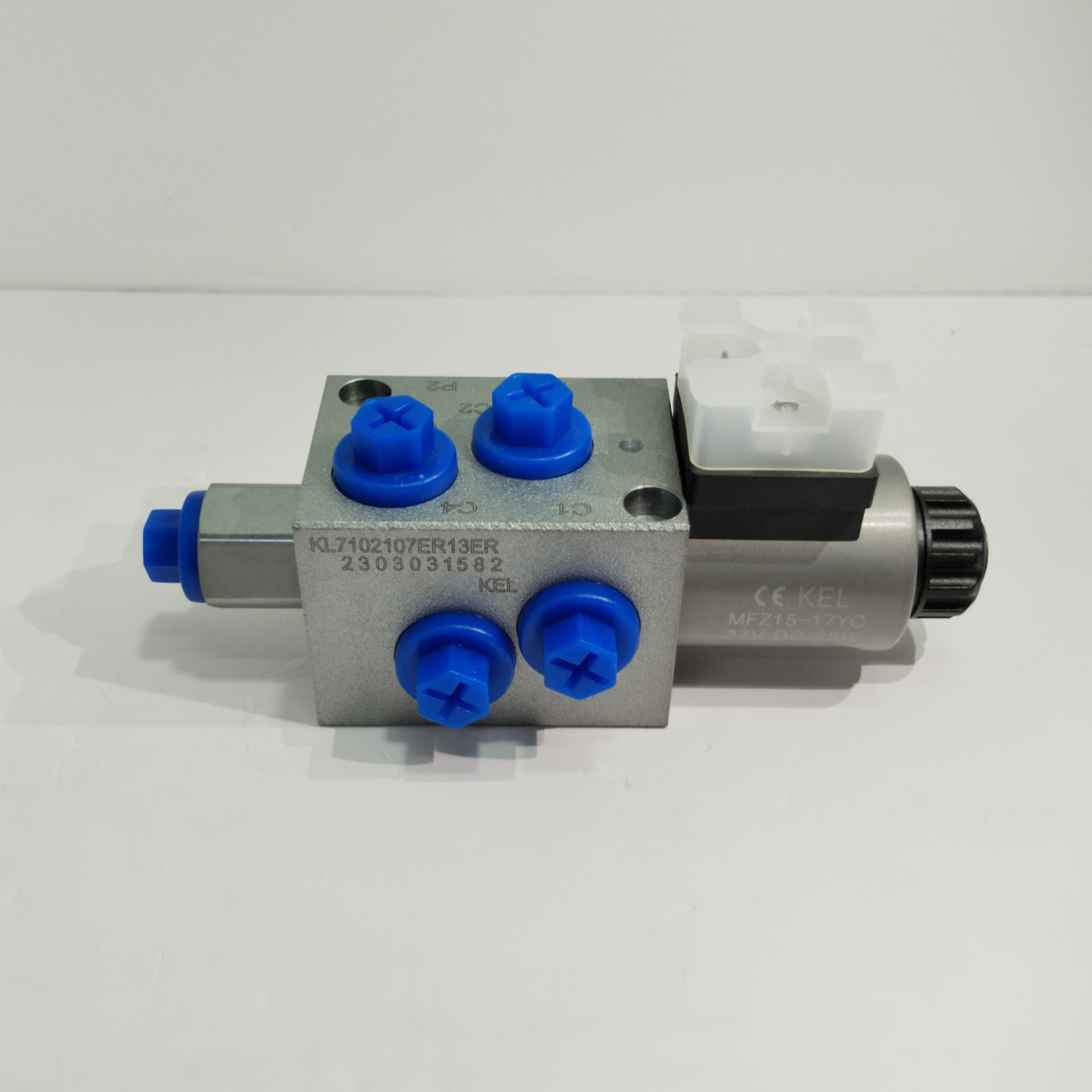

Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
