Product Pictures:
Description :
KRPKC Big Size Hydraulic Relief Valve With Best Quality Kaienli Steel Cartridge Over Flow Valve With Cavity T-18A
Description:
Threaded plug-in and pilot type remote control overflow valve
Working Principle:
The pilot controlled, balanced slide valve structure overflow valve is a normally closed pressure regulating valve. When the pressure at the inlet (port 1) reaches the set value of the valve, the valve begins to overflow towards the oil tank (port 2), throttling to regulate the pressure. This type of valve has high pressure regulation accuracy, small pressure fluctuations with flow rate, stable regulation, low noise, and moderate response speed
Technical parameters:
Rated pressure: 420 bar
Rated flow rate: 760 lpm
Internal leakage rate: within 200ml/Min at 100 bar for one port
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Medium: Recommended 46 # anti wear hydraulic oil
Weight: 1.18Kg
Installation torque: 474-508N. m
Valve hole: T-18A;
Product technical data:

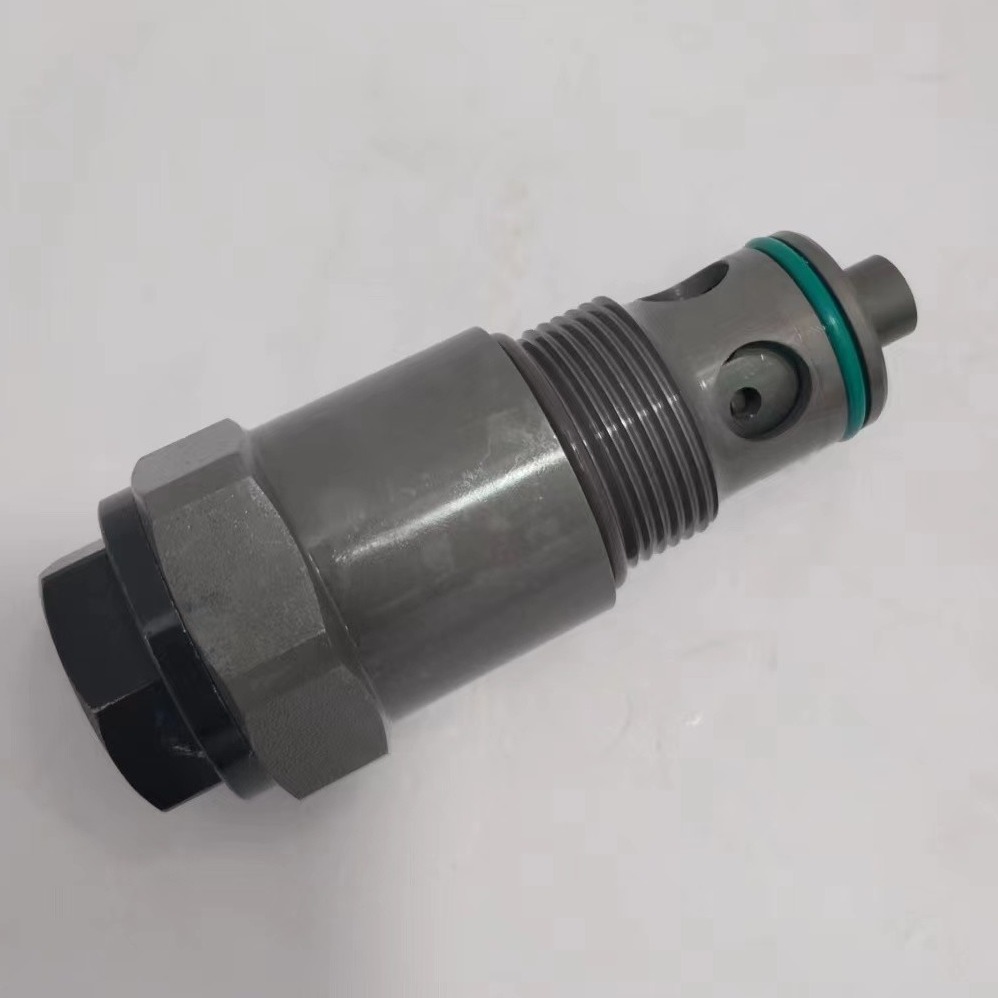

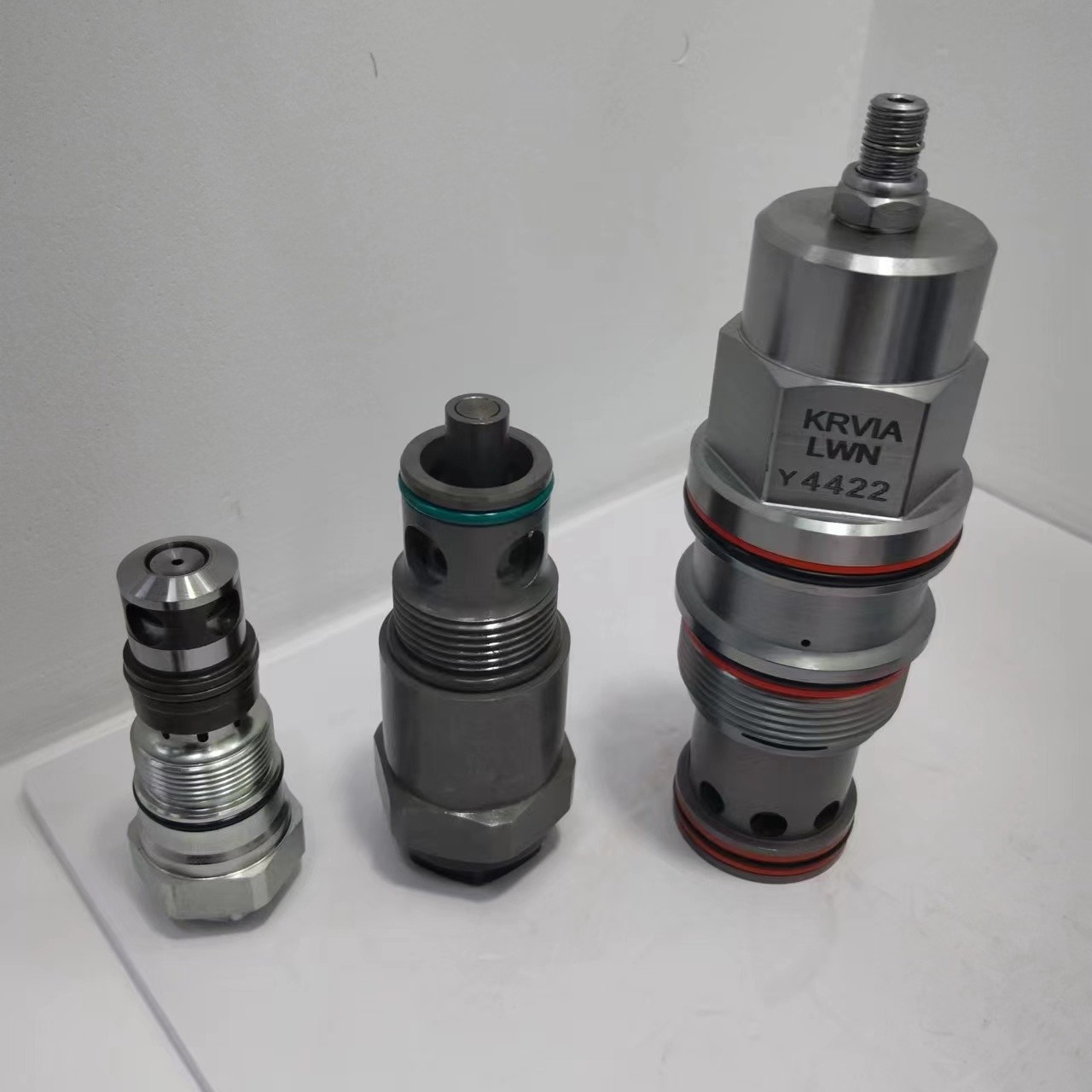

Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
