Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

1 pieces
MOQ
USD 1- 5 per piece (depends on the different types )
Price
Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: One-way Check Valve
Cavity: VC 06, VC08-2 , CV10,CV12 ,CV16
Rated Pressure: 250 Bar
Rated Flow: 30L/Min
Working Principle: Single Way Check Valve
Valve Material: Steel
Origin: Chian Mainland
Brand: Kaienli
Surface Treatment: Ntriding Treatment
Highlight:

Pressure Hydraulic Check Valve

,

Hydraulic Check Valve Single Way

,

Directional Check Valve Nitriding
Basic Infomation
Place of Origin: China
Brand Name: Kaienli
Certification: available
Model Number: KCV08-20
Payment & Shipping Terms
Packaging Details: Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet
Delivery Time: 2 or 3 weeks, depends on quantity and design
Payment Terms: L/C, D/A, D/P, T/T, Western Union,
Supply Ability: usually about 2 weeks, depends on which type and the quantity demand
Product Description

Product Pictures:



Description :





KCV08-20 hydraulic single way valve with nitriding treatment CV08-20 CV08-21 check valve





Technical parameters:


Working pressure: 315 bar (4553 psi)
Pressure resistance: 350 bar (5075 psi)
Rated flow rate: 30L/Min, see performance chart
Internal leakage rate: at 250 bar (3625 psi), maximum 0.1ml/min (2 drops/min)
Definition of opening pressure: When the flow rate reaches 16.4 milliliters per minute (1 cubic inch per minute pressure test value bar (psi))
Standard opening pressure: 0.3 bar (4 psi); 0.7 bar (10 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Medium: Mineral oil with a viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or synthetic oil with lubricating properties
Valve hole: VC08-2



Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

Pressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

Product technical data:

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

Pressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

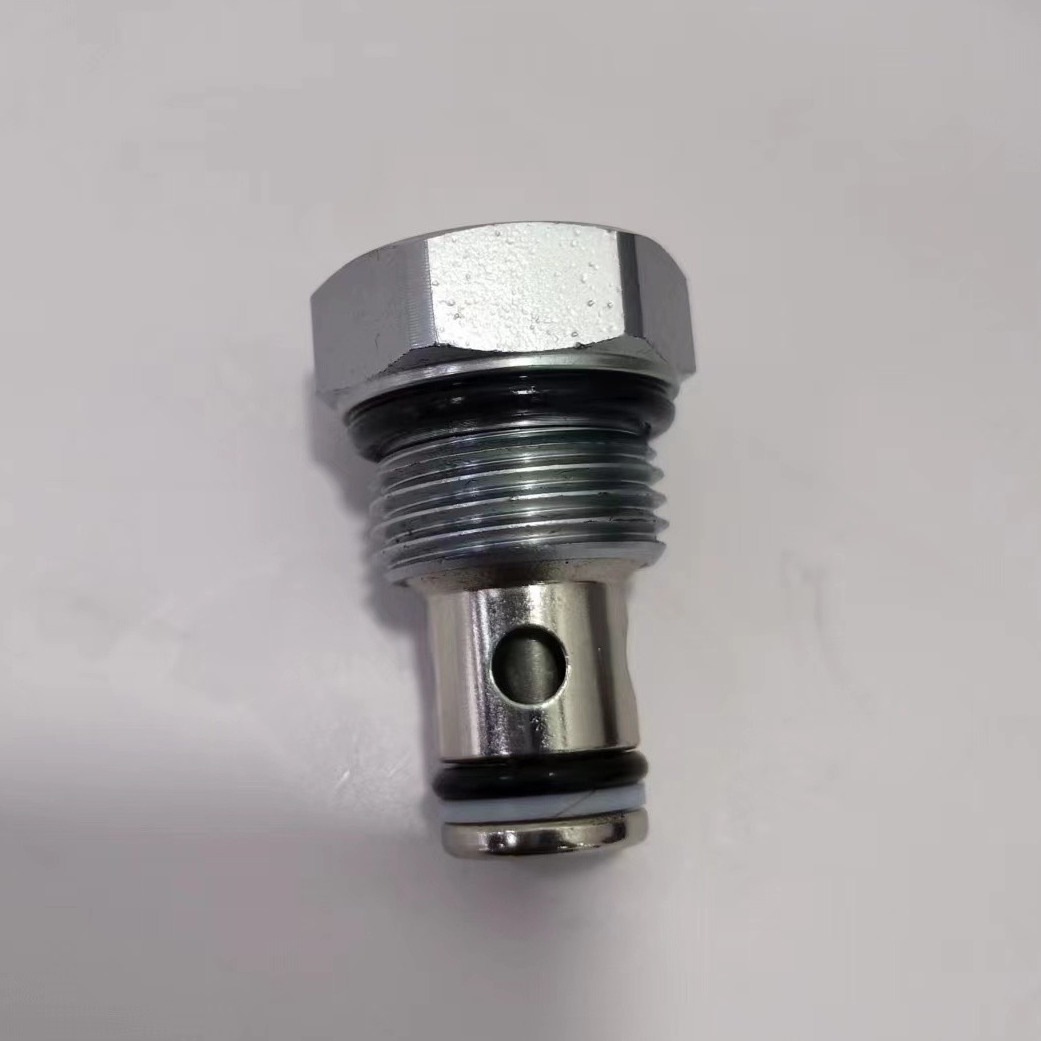

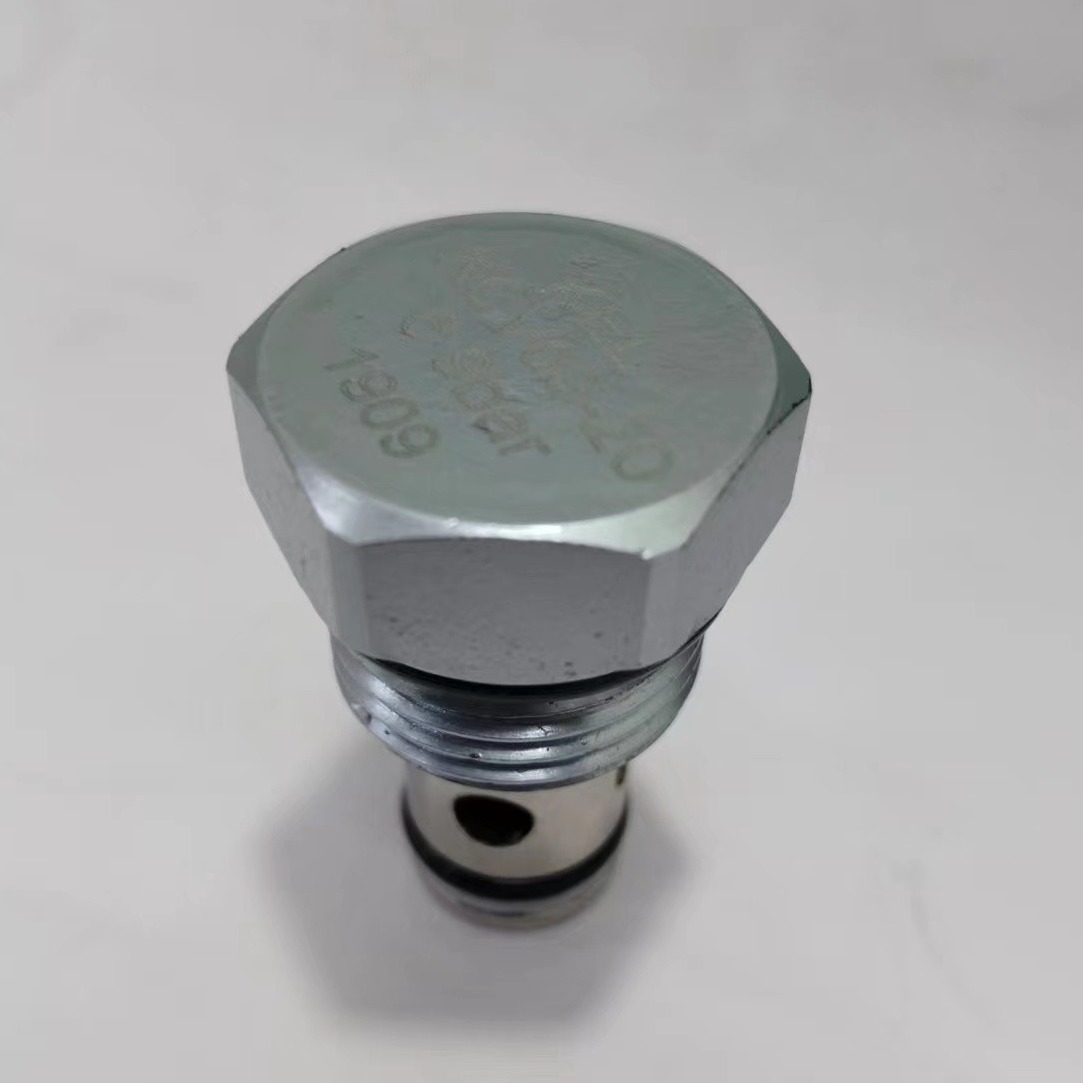

Product real pictures :

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment



Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment



Company Exhibitions:

2023 Shanghai PTC AISA exhibition

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment







Our Certificate:



Pressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding Treatment







Product processing procedures:

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment







Our new factory and workshop :

Pressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding TreatmentPressure Directional Hydraulic Check Valve Single Way Nitriding Treatment



Our warehouse:

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment





Shipment:

Pressure Directional Hydraulic Check Valve Single Way Nitriding Treatment







Different Series of Product , more details please contact us directly:

Hydraulic valves:





Type 1 soloenid valve
Type 2 manual cartridge valve
Type 3 2 way 2 position solenoid valve
Type 4 2 way 6 position solenoid valve
Type 5 2 way 8 position solenoid valve
Type 6 Pilot oil resource valve
Type 7 explosion proof valve
Type 8 balance valve
Type 9 check valve
Type 10 Hydraulic lock
Type 11 Valve manifolds
Type 12 valve block



Welcome your visit and inquiry !
