Product Pictures:
Description :

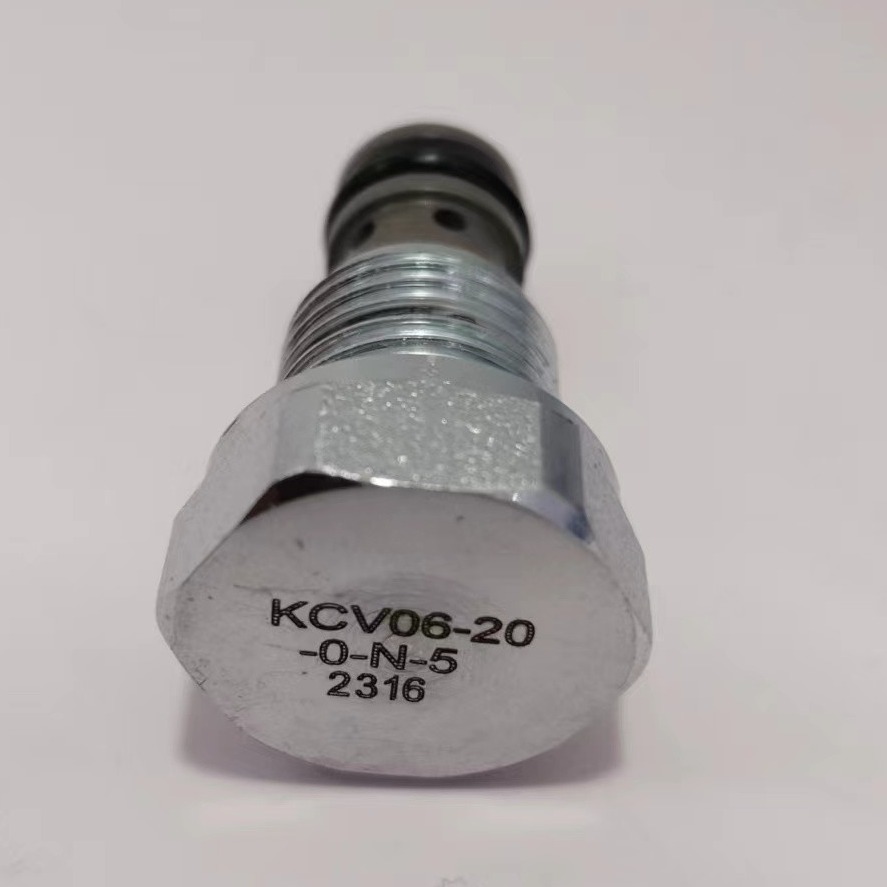

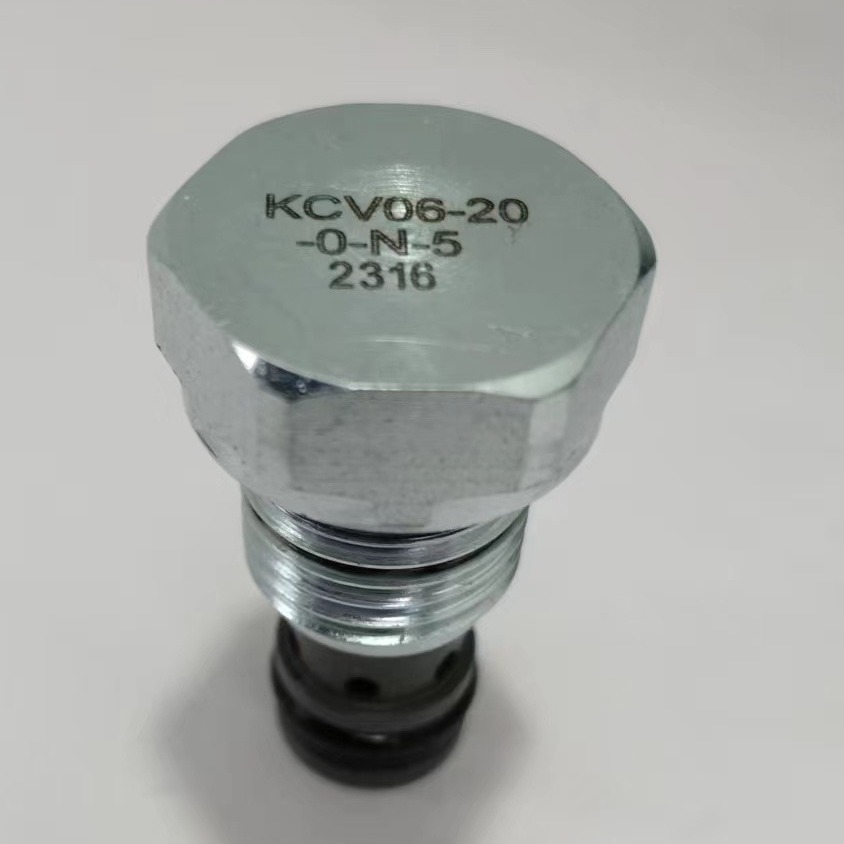

KCV06-20 small size one way check valve with harded treatment antirusting surface CV06 valve
Technical parameters:
Working pressure: 315 bar (4553 psi)
Pressure resistance: 350 bar (5075 psi)
Rated flow rate: 30L/Min, see performance chart
Internal leakage rate: at 250 bar (3625 psi), maximum 0.1ml/min (2 drops/min)
Definition of opening pressure: When the flow rate reaches 16.4 milliliters per minute (1 cubic inch per minute pressure test value bar (psi))
Standard opening pressure: 0.3 bar (4 psi); 0.7 bar (10 psi); 1.7 bar (25 psi); 4.1 bar (60 psi)
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Medium: Mineral oil with a viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or synthetic oil with lubricating properties
Valve hole: VC08-2
Product technical data:
Product real pictures :
Company Exhibitions:
2023 Shanghai PTC AISA exhibition
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
