Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow

1 pieces
MOQ
USD 1- 5 per piece (depends on the different types )
Price
Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Non Return Check Valve
Cavity: VC 06, VC08-2 , CV10,CV12 ,CV16
Rated Pressure: 250 Bar , 350 Bar , 420 Bar
Rated Flow: 30L/Min , 75L/Min , 95L/Min
Working Principle: Single Way Check Valve
Valve Material: Steel
Origin: Chian Mainland
Brand: Kaienli
Surface Treatment: Ntriding Treatment
Highlight:

Hydraulic Single Check Non Return Valve

,

Directional Single Check Non Return Valve

,

Non Return Valve Direction Harded
Basic Infomation
Place of Origin: China
Brand Name: Kaienli
Certification: available
Model Number: KCV08-21
Payment & Shipping Terms
Packaging Details: Plastic film+PE bag+mesh packaging sleeve+sponge spacer+cardboard box+pallet
Delivery Time: 2 or 3 weeks, depends on quantity and design
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: usually about 2 weeks, depends on which type and the quantity demand
Product Description

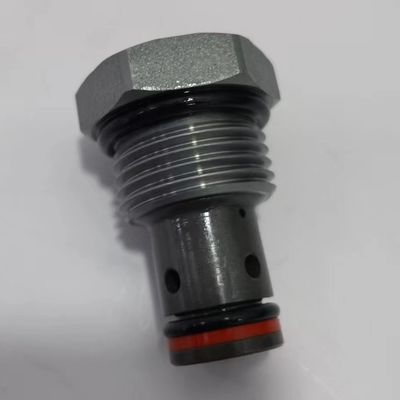

Product Pictures:



Description :

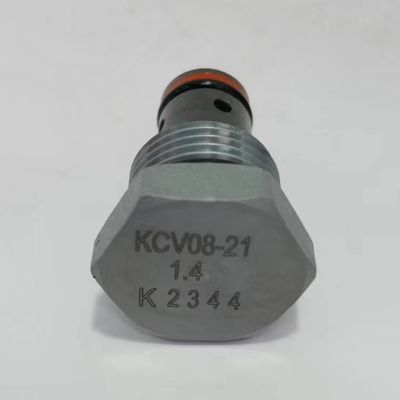

KCV08-21 Harded check valve with flow 30L 40L 60L 95L one way check valve





Working Principle:
Allow oil to flow from ① to ②, while blocking reverse flow of oil. The fully guided valve core closes the valve port under the pressure of the return spring until the pressure at ① is large enough to open ②.







Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 0

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 1Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 2Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 3Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 4Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 5Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 6Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 7Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 8Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 9

Product technical data:

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 10

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 11Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 12



Product real pictures :

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 13



Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 14

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 15

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 16



Company Exhibitions:

2023 Shanghai PTC AISA exhibition

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 17

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 18







Our Certificate:



Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 19Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 20







Product processing procedures:

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 21







Our new factory and workshop :

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 22Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 23Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 24Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 25



Our warehouse:

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 26





Shipment:

Hydraulic Directional Single Check Non Return Valve Direction Harded With Flow 27







Different Series of Product , more details please contact us directly:

Hydraulic valves:



Type 1 soloenid valve
Type 2 manual cartridge valve
Type 3 2 way 2 position solenoid valve
Type 4 2 way 6 position solenoid valve
Type 5 2 way 8 position solenoid valve
Type 6 Pilot oil resource valve
Type 7 explosion proof valve
Type 8 balance valve
Type 9 check valve
Type 10 Hydraulic lock
Type 11 Valve manifolds
Type 12 valve block
