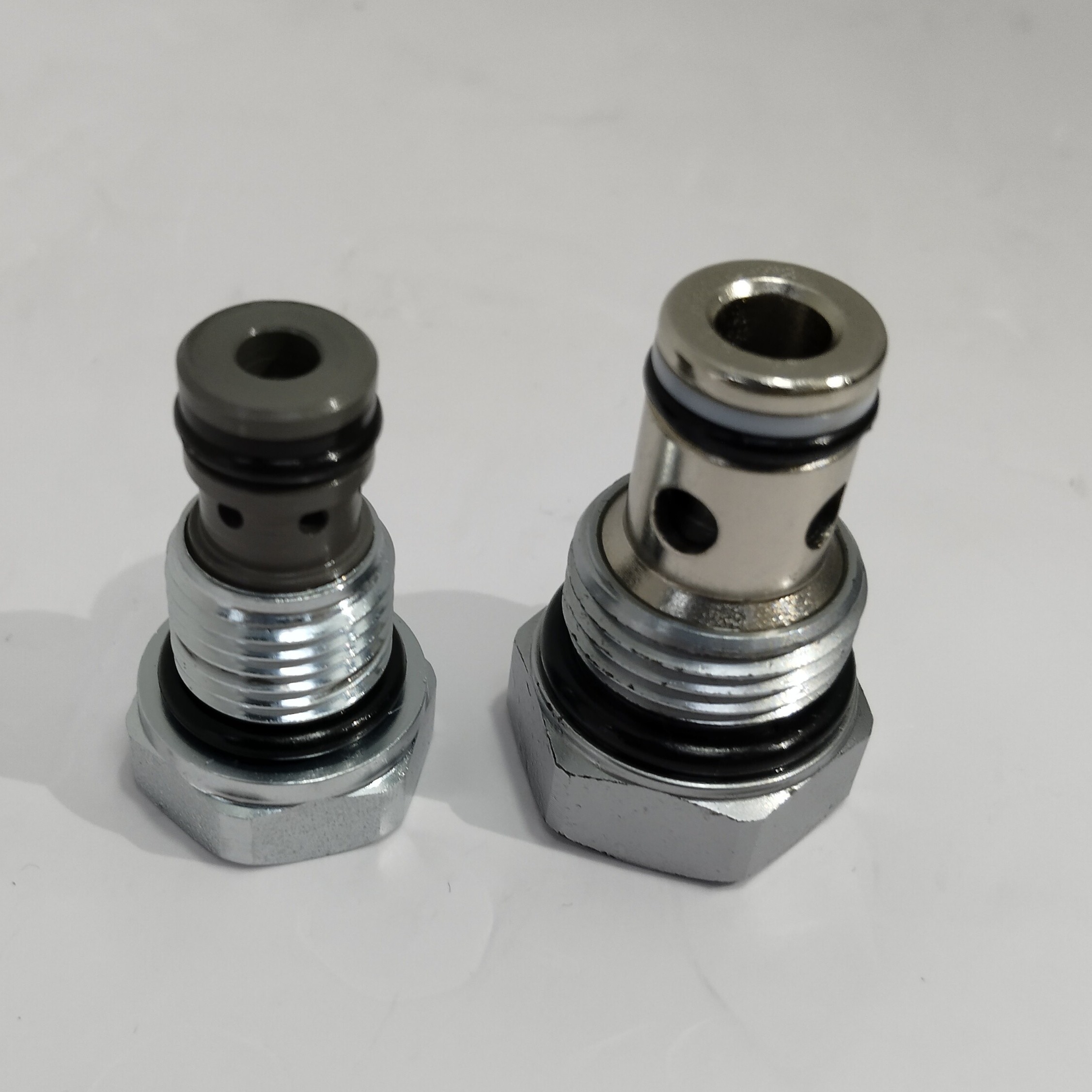

Product Pictures:
Description:
KCV series one-way valve with one direction hydraulic check valve KCV08-20 1--2- 12-20 -16-20 -20-20 single way valve
Technical parameters:
Rated pressure: 350 bar, maximum pressure resistance: 420bar
Flow: 95 lpm max
Internal leakage: 2 ports at 240 bar, maximum 5 drops/minute
Temperature range: -40℃～120℃ (standard nitrile rubber seal)
Filter: Within NAS level 9
Medium: Mineral oil with viscosity between 7.4~420 cSt (50~2000 ssu) or synthetic oil with lubricating effect
Weight: 0.2Kg
Installation torque: 40-42N.m
Valve hole: VC 06, VC08-2 , CV10,CV12 ,CV16
Product technical data:

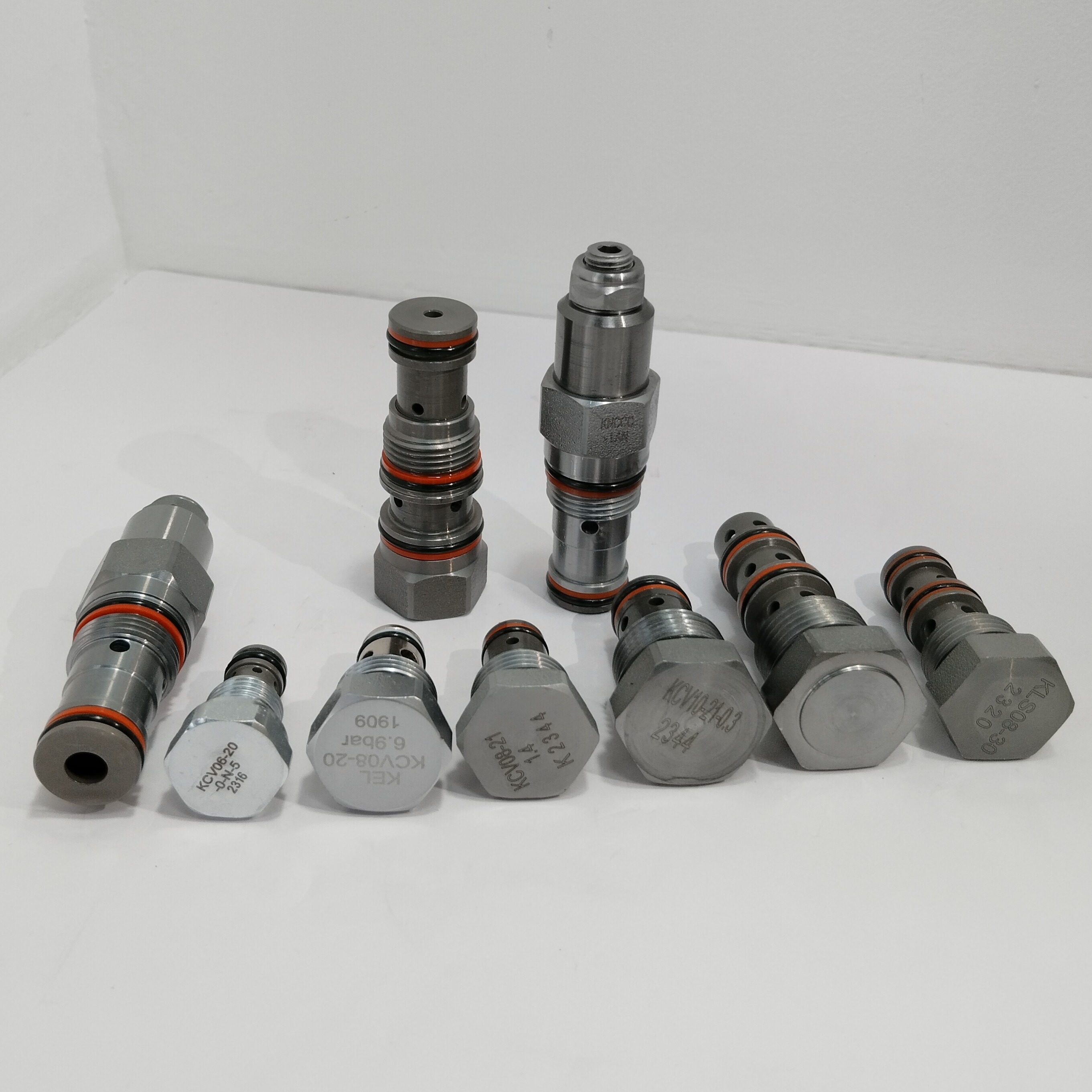

Product real pictures :
Company Exhibitions:
2023 Shanghai PTC AISA exhibition
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
