Product Pictures:

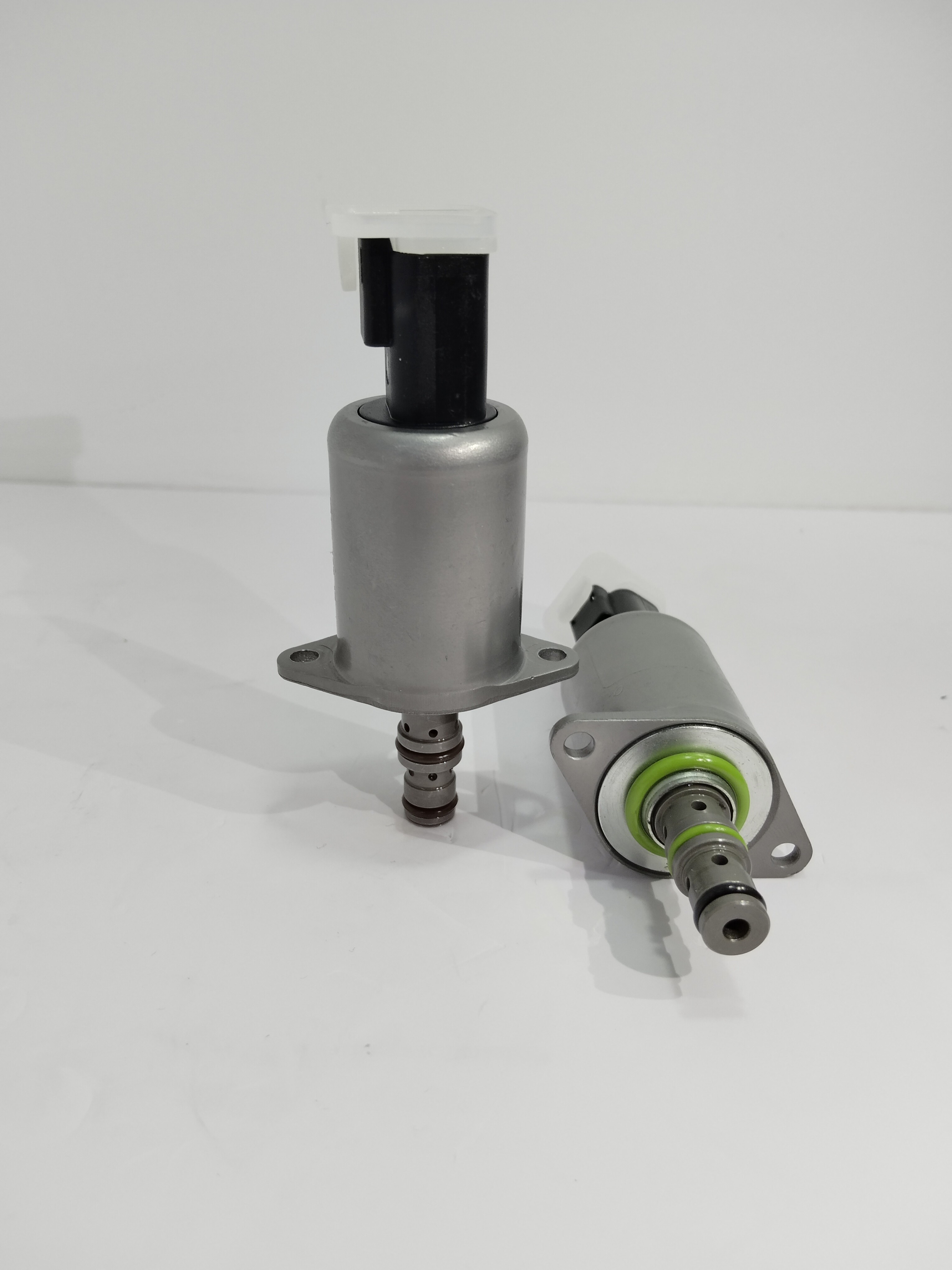

KPPCD04 hydraulic flange proportional pressure reducing valve with amounted hole Thomas propotional solenoid valve
Technical parameters:
Rated pressure: P: 50 bar, T: 30Bar
Rated flow rate: 5L/Min, see performance chart
Internal leakage: When P=50 bar, non charged leakage: within 30ml/Min, charged leakage: within 60ml/Min
Voltage: 12V corresponds to maximum control current: 1500mA, 24V corresponds to maximum control current: 750mA
Electrical interface: DT04-2P, waterproof grade: IP69K
Temperature range: -20 ℃ to 90 ℃, standard nitrile rubber seal
Response time: within 50ms, working frequency: 100Hz
Coil: Made of metal shell with good heat dissipation performance, with a continuous charged temperature of up to 90 ℃
Filter: 125um
Medium: Mineral oil with a viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or synthetic oil with lubricating properties
Valve hole: TC06025
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
