Product Pictures:
Description :

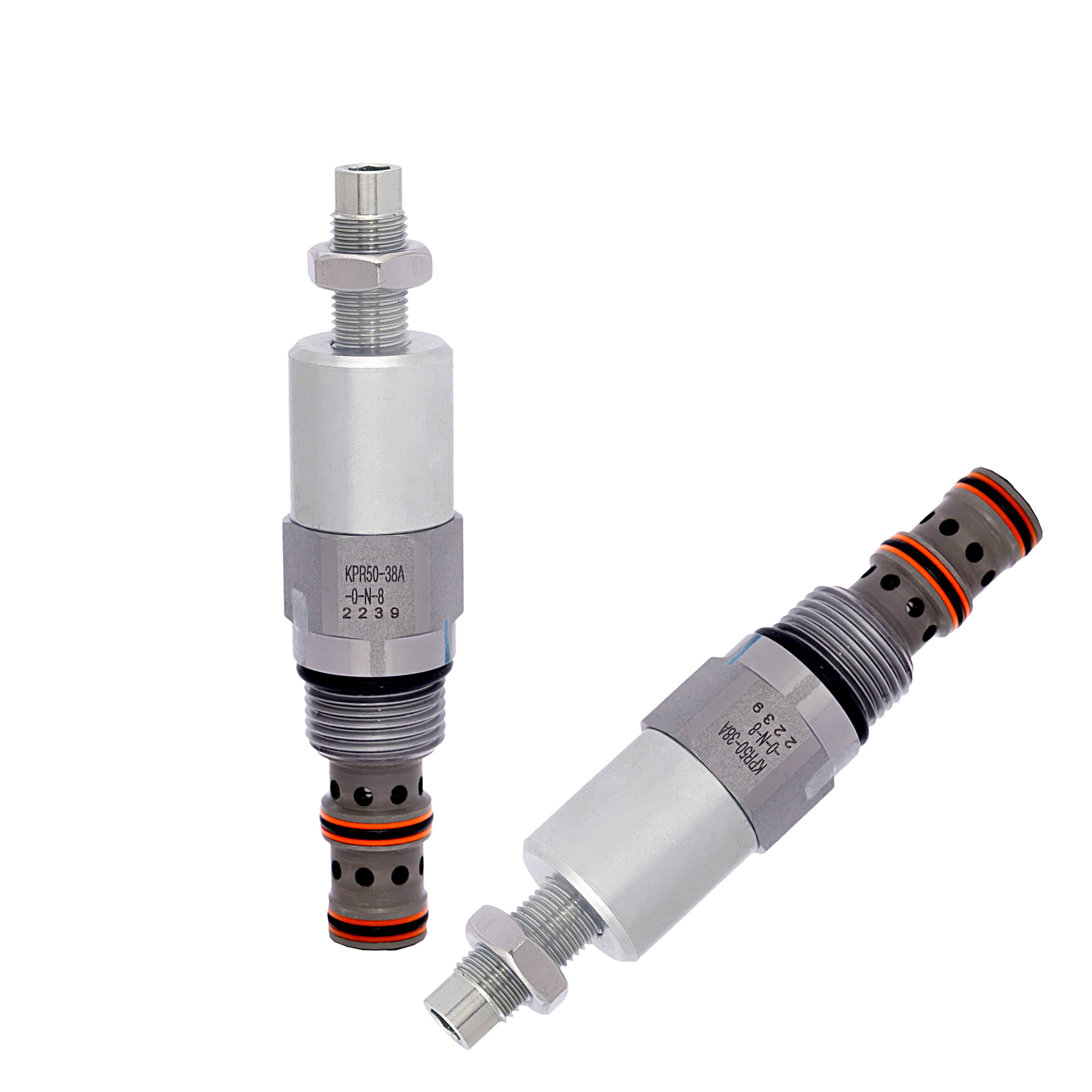

KPR50-38A-0-N Hydraulic Sun and Hydraforce series cartridge pressure reduce valve
Technical parameters:
Rated pressure: 350 bar
Rated flow rate: 60L/Min
Internal leakage rate: maximum 82ml/min at 207 bar for 3 ports
Temperature range: -40 ℃~120 ℃ (standard nitrile rubber seal)
Filter: Within NAS9 level
Installation torque: 34-37Nm, installation hexagon: S25.4
Medium: Mineral oil with a viscosity between 7.4 to 420 cSt (50 to 2000 ssu) or synthetic oil with lubricating properties
Weight: 0.27Kg
Valve hole: VC10-3
Product technical data:
Product real pictures :
PTC Exhibition:
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
