Product Pictures:

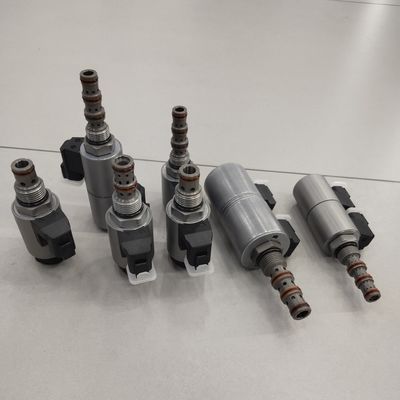

KSF12-23-0-N cartridge type solenoid valve , threaded cartridge solenoid valve ER DG DL connector solenoid valve
Working principle:
When power is cut off, KSV10-23LP-0-N allows oil to flow in both directions from ② to ①. When energized, the valve core closes, thereby stopping the flow of oil from ② to ①. In this mode, after overcoming the electromagnetic force (the required pressure is 3.4 to 10.3 bar [50 to 150 psi]), the oil is allowed to flow from ① to ②. Emergency manual control option operation method: To perform emergency operation, please press and hold the emergency button
Characteristics:
Rated pressure: 350 bar,
Rated flow rate: 60 L/Min,
Leakage rate: When the working pressure is 210bar, the leakage rate is within 5 drops/min
Temperature range: -40 ℃ to 120 ℃, standard nitrile rubber seal
Coil power: 20W, voltage 12V, output current 1.67A, voltage 24V, output current 0.85A
Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
Valve hole: VC10-2
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
