Product Pictures:
KSF16-22-0-N Hydraforce replacement standard hydraulic solenoid valve with two way two position 12V 24V valve
Working principle:
When power is off, KSV10-25L cuts off the two-way flow of oil. When energized, the insert's spool moves, allowing oil to flow in both directions. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.
Characteristics:
Working pressure: 315 bar. 1 port pressure: 250Bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 60 L/Min,
Leakage volume: When the working pressure is 250bar, the leakage volume is within 82ml/Min
Temperature range: -40°C to 120°C, standard butadiene rubber seal
Coil power: 20W, voltage 12V output current 1.67A, voltage 24V output current 0.85A
Medium: Foam hose 7.4~420cSt (50~2000ssu) mineral oil or synthetic oil with lubricating effect
Valve hole: VC10-2
Product technical data:

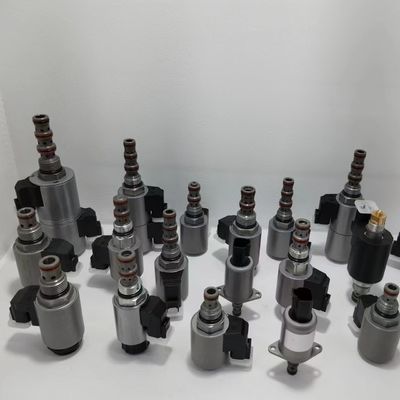

Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
