Product Pictures:
KSF12-22-0-N two way two position VC-10 cavity with thread hydraulic solenoid valve
Working principle:
When power is off, KSV10-25 cuts off the two-way flow of oil. When energized, the spool of the insert moves, thereby blocking the flow of oil in both directions. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.
Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.
Product technical data:

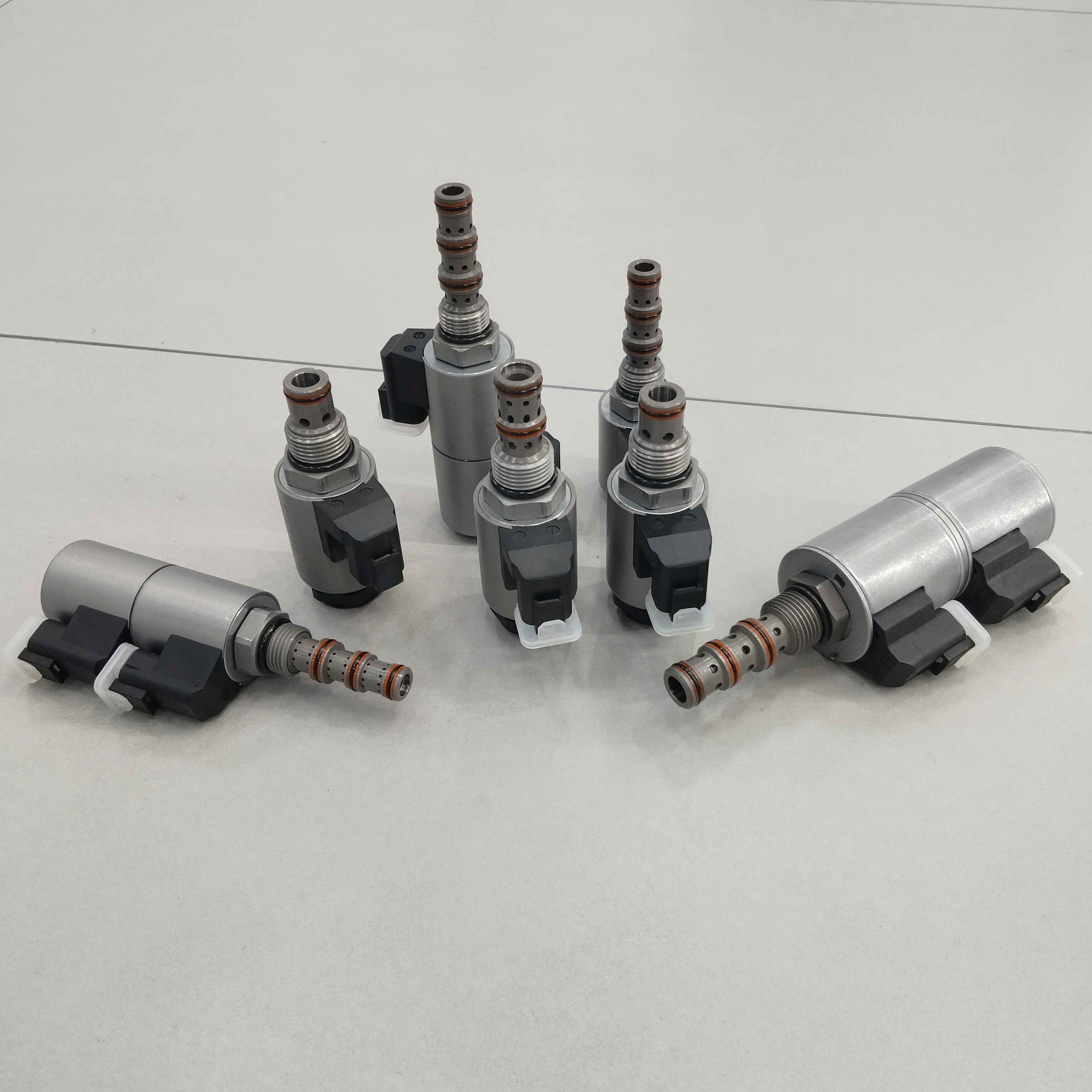

Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
