hydraulic Cartridge Solenoid Valve Three Way Two Position 12V Or 24V

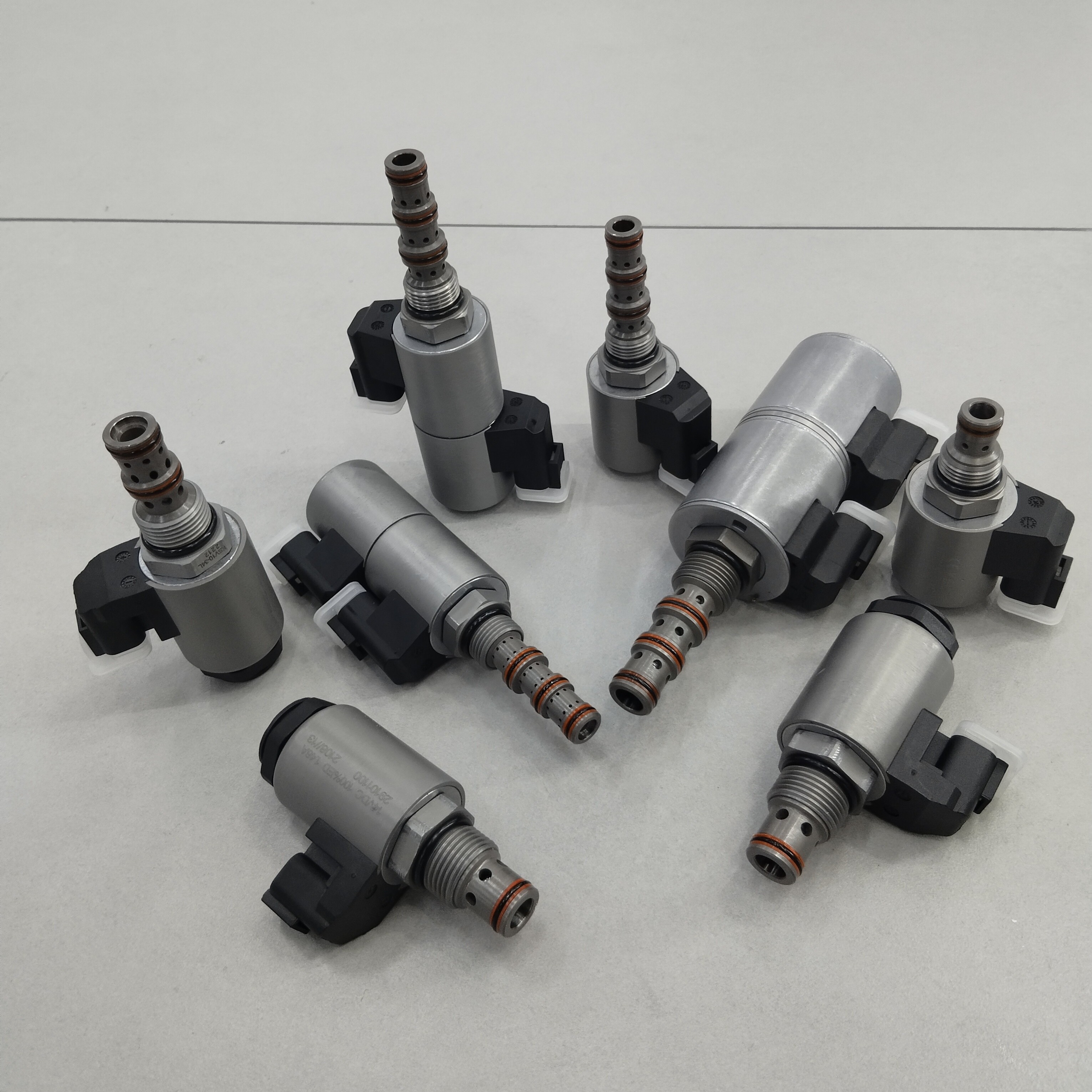

Product Pictures:

KSV08-30L-0-N hydraulic solenoid valve three way two position ER DT04-2P 12V or 24V

Characteristics:
1: Working pressure: 315 bar, maximum pressure resistance of 1 port: 210 bar
2: Pressure resistance: 350 bar (5075 psi)
3: Rated flow rate: 20 L/Min,
4: Leakage rate: When the working pressure is 210bar, the leakage rate is within 82ml/Min
5:Temperature range: -40 ℃ to 120 ℃, standard nitrile rubber seal
6: Coil power: 20W, voltage 12V, output current 1.6A, voltage 24V, output current 0.8A
7: Medium: Mineral oil with a viscosity between 7.4 to 420cSt (50 to 2000ssu) or synthetic oil with lubricating properties
8: Valve hole: VC08-3

Working principle:
When the power is off, KSV08-31L-0-N allows oil to flow from ② to ① and stops at ③. After energization, the valve core moves, thereby connecting the flow from ① to ③ and cutting off the flow at ②. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.

Product technical data:
