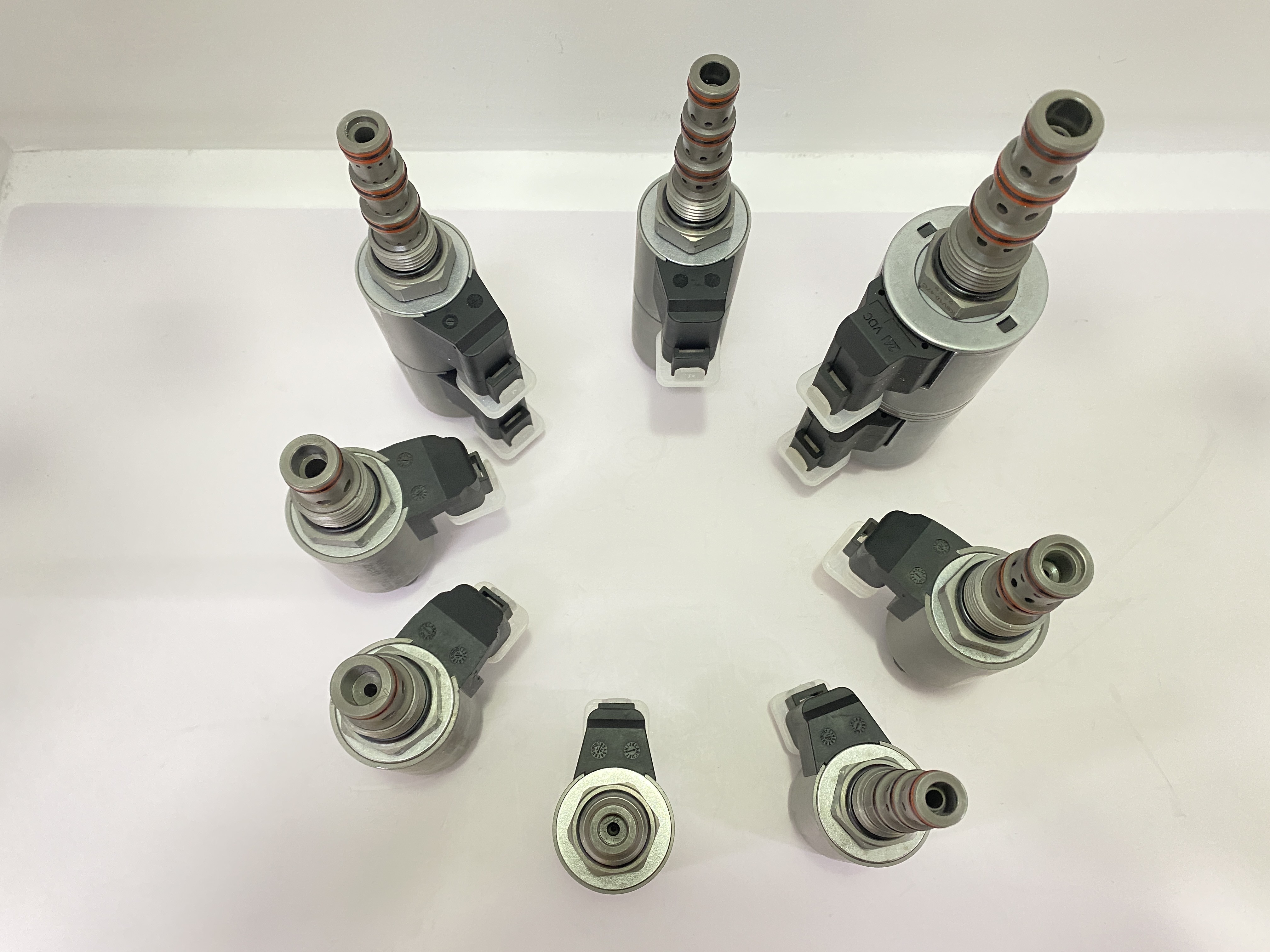

Product Pictures:
KSV10-3L-0-N hydraulic solenoid valve with 2 position 3 way oil control cut off valve of hydraforce cavity
Working principle:
When the power is off, the KSV10-3L-0-N oil changes from ② to ①, ③ to its own state. After power is turned on, the valve core moves, allowing oil to flow from ③ to ②, ① a state. Operation method of emergency manual control option: To perform emergency operation, please press the button. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, activate the emergency button operation and the emergency device will automatically reset.
Characteristics:
Working pressure: 250 bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 25 L/Min, ② in the cut-off state, at 250 bar, less than 5 drops/Min
Temperature range: -40℃ to 120℃, standard nitrile rubber seal
Coil power: 30W, voltage 12V output current 2.5A, voltage 24V output current 1.25A
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Valve hole: VC10-3;
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
