KSV08-40L-0-N 2 Position 4 way Hydraulic Valve Cartridge Threaded Spool Type Solenoid Valve

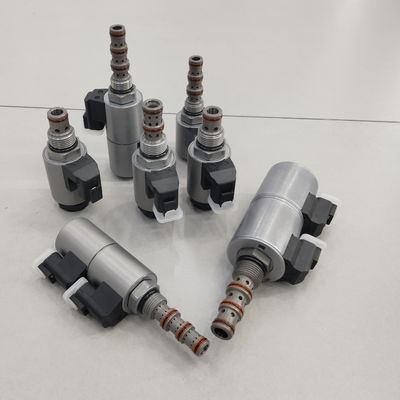

Product Pictures:

KSV08-40L-0-N SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION DIN43650 OR ER DT04-2P CONNECTOR

Description:
Electromagnetic drive, 4-way, direct acting spool type, hydraulic threaded directional valve.

Working principle:

When power is cut off, KSV08-40L-0-N allows oil to flow from ③ to ② and from ④ to ①. After being powered on, the valve core moves, thereby connecting ③ flow direction ④ and ② flow direction ①. All oil ports are connected during the reversing process. Manual control option operation method: To perform emergency operation, please press the button, rotate it counterclockwise 180 °, and then release it. The built-in spring will push the button out. At this position, the valve may only partially move. To ensure complete emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button and rotate 180 ° clockwise before releasing. The emergency manual control option will be locked in this position.

Features:

● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.
