Cartridge Solenoid Hydraulic Valve 24v 3 Way 5 Position Directional Control Valve

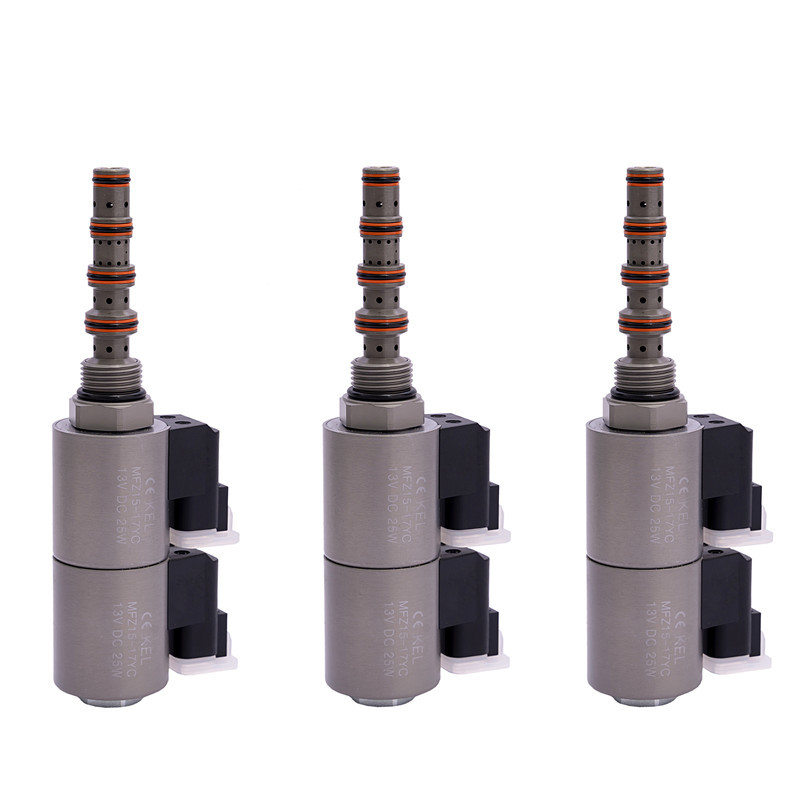

Product Pictures:

KSV10-44-0-N hydraulic valve, direct-acting 2 position 4 way directional control

Working principle:
When powered off, the KSV10-44 allows oil to flow from ③ to ④, and from ② to ①. After powering on, the valve core of the plug-in moves, thereby connecting the flow from ③ to ①, and blocking ④ and ②. Operation method of emergency manual control option: To perform emergency operation, please press the button, rotate it 180° counterclockwise and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.

Characteristics:
Working pressure: 207 bar (3000 psi)
Pressure resistance: 350 bar (5075 psi)
Flow: Maximum 23 L/Min (6 gpm)
Internal leakage: 82 ml/min (5 cubic inches/min) maximum at 207 bar (3000 psi)
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil rated load: Continuous operation within 85% to 115% of rated voltage range
Initial coil current at 20°C: Standard coil: 1.67 A at 12 VDC, 0.18 A at 115 VAC (full wave rectified). E-coil: 1.7 A at 12 VDC; 0.85 A at 24 VDC
Minimum pick-up voltage: 85% of rating at 207 bar (3000 psi)
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Valve hole: VC10-4;
