On Off Cartridge Solenoid Valve Replacement Hydraulic Cavity

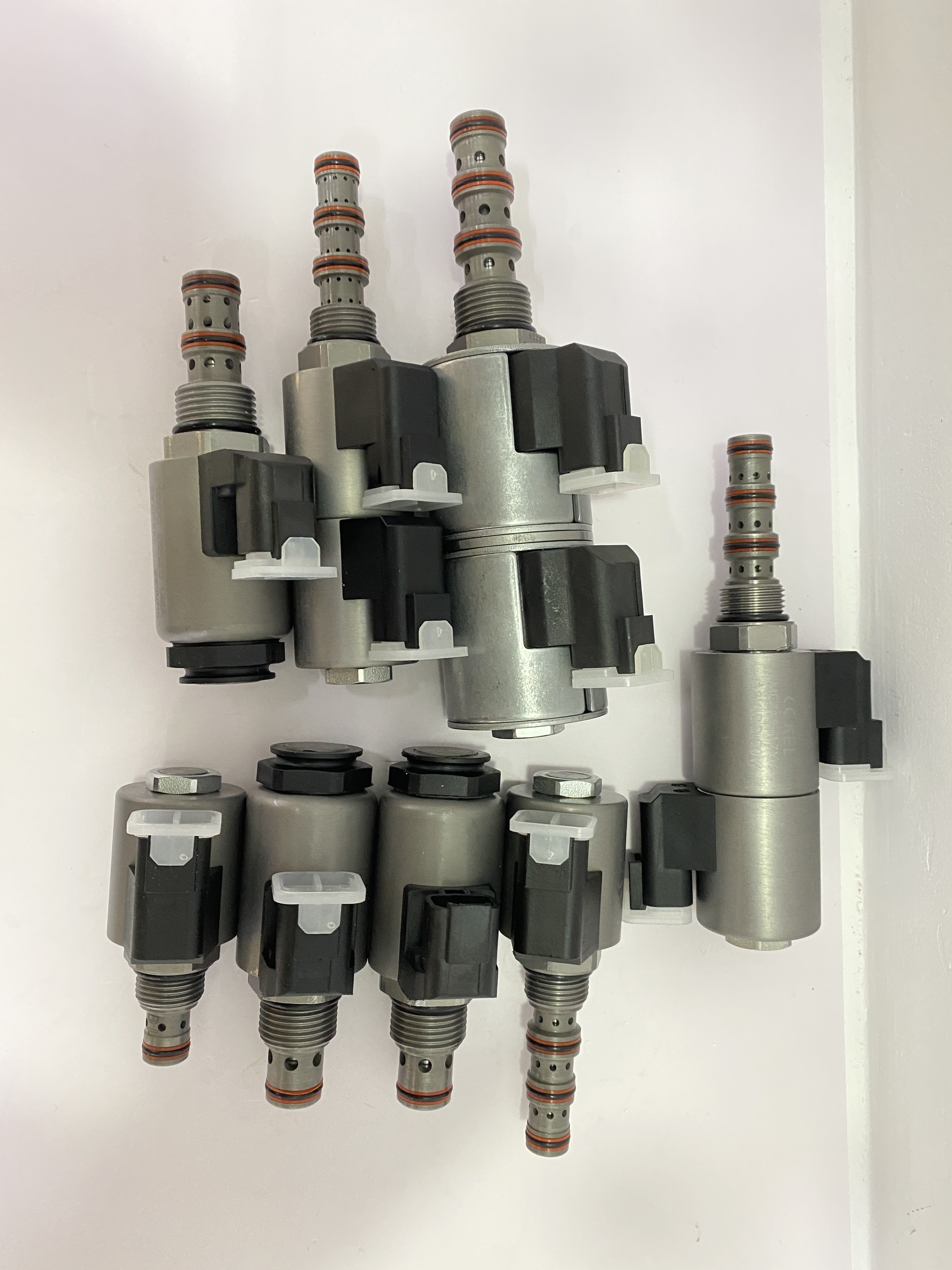

Product Pictures:

KSV10-40-0-N ER DG DL hydraulic on-off control solenoid valve , replacement of hydraforce cavity solenoid valve

Working principle:
When powered off, the KSV10-40 allows oil to flow from ③ to ② and from ④ to ①. When energized, the spool moves to connect ③ flow direction ④ and ② flow direction ①. How to operate the emergency manual control option: To perform emergency operation, press the button, rotate it 180° counterclockwise, and then release it. A built-in spring pushes the button out. In this position, the valve may only be partially moved. To ensure full emergency movement, pull the button to its maximum travel and hold it in this position. To restore normal valve function, press the button, turn it 180° clockwise and release. The emergency hand control option will lock in this position.

Characteristics:
Working pressure: 207 bar (3000 psi)
Pressure resistance: 350 bar (5075 psi)
Flow: 11.4 L/Min maximum (3 gpm) at 207 bar (3000 psi), 164 ml/Min maximum
Temperature range: -40°C to 120°C, standard nitrile rubber seal
Coil rated load: Continuous operation within 85% to 115% of rated voltage range
Initial coil current at 20°C: Standard coil: 1.2 A at 12 VDC, 0.13 A at 115 VAC (full wave rectified). Type E coil: 1.4 A at 12 VDC; 0.7 A at 24 VDC
Minimum pick-up voltage: 85% of rating at 207 bar (3000 psi)
Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
Valve hole: VC08-4;

Product technical data:

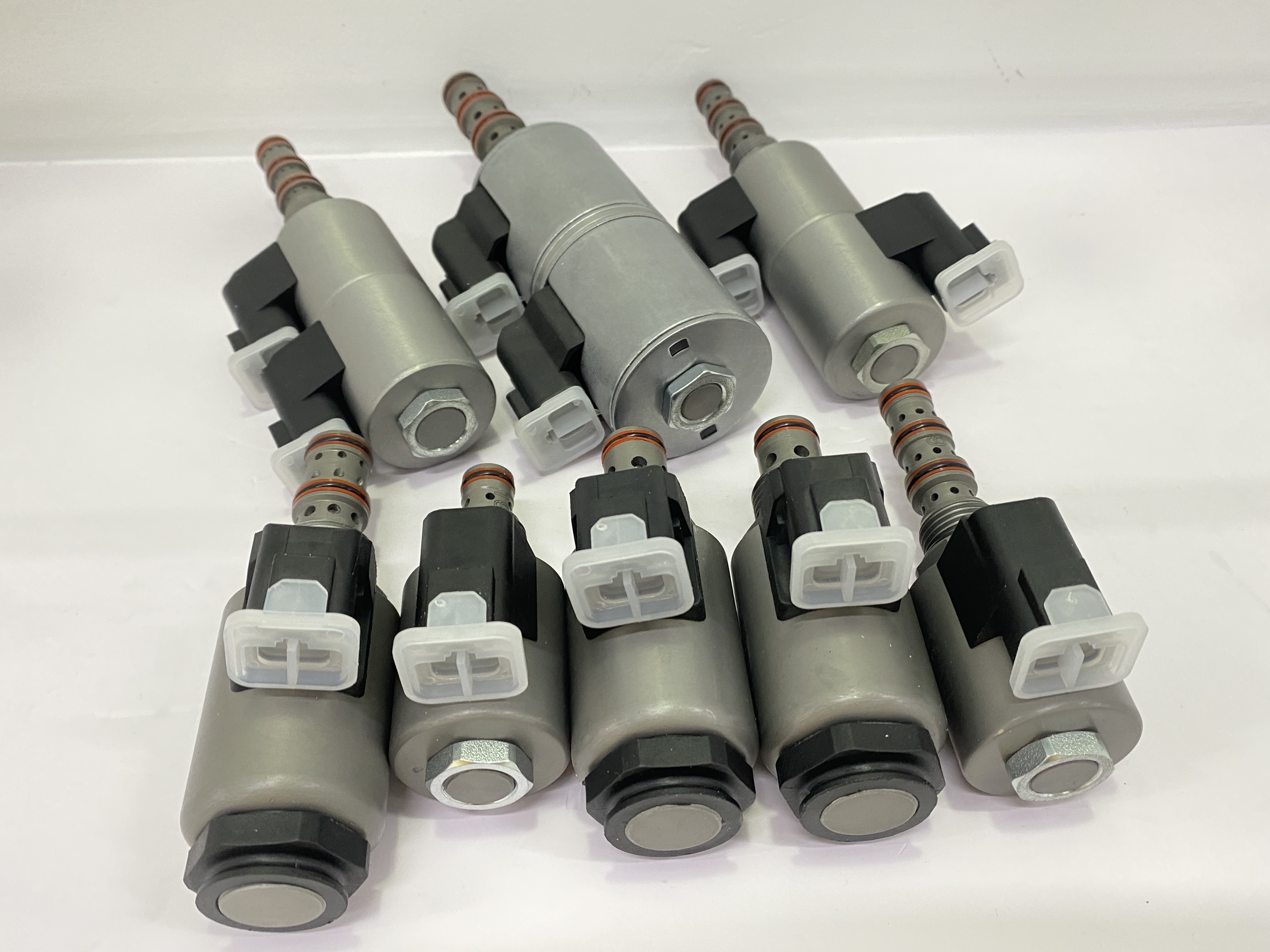

Product real pictures :
