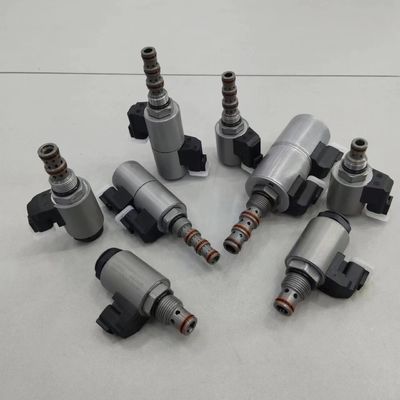

Product Pictures:
KSV08-47AL-0-N ER or DG two solenoid coil on-off control valve four way three position
Features:
1. Continuously work with power at ambient temperature +90℃
2. No stagnation at low temperature -40℃.
3. Wide voltage: ±20% of rated voltage.
4. The exposed surface is plated with new nickel alloy.
5. All oil ports can be fully pressurized.
6. Plug-in voltages are interchangeable.
7. Emergency manual control option.
8. The inside of the coil is IP67K waterproof and can be washed with water.
9. Integral molded coil design.
10. Industrial universal valve hole.
Characteristics:
●Rated pressure: 315 bar, maximum pressure of 1 port is 210Bar,
●Rated flow: 11.4L/Min
●Leakage volume: 328 ml/Min maximum at 210 bar
●Temperature range: -40°C to 120°C, standard nitrile rubber seal
●Coil rated load: can work continuously within the rated voltage range of 85% to 115%
●Initial coil current at 20°C: Standard coil: 1.67 A at 12 VDC, Type E coil: 1.7 A at 12 VDC; 0.85 A at 24 VDC
●Minimum pick-up voltage: 80% of rated value at 315 bar
●Medium: Mineral oil with viscosity between 7.4~420cSt (50~2000ssu) or synthetic oil with lubricating effect
●Weight: 0.43Kg
●Installation torque: maximum 27Nm, installation hexagon: S24
●Valve hole: VC08-4;
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
