Product Pictures:

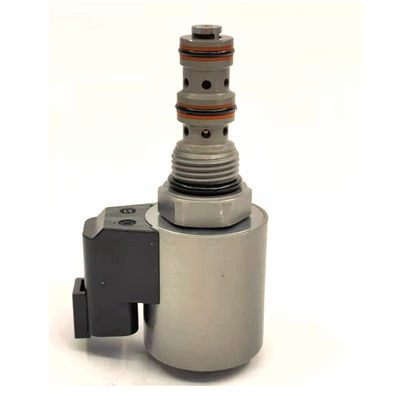

KSV08-30-0-N solenoid flow control valve, solenoid hydraulic valve with 3 way three position
Working principle:
During power outage, KSV08L-30 allows oil to flow from ② to ①, while
③ Stop at. After being powered on, the valve core of the plug-in moves, connecting
③ to ②, and stopping the flow of oil from ①. The oil port ① can be used as an
oil inlet, and the pressure cannot exceed 210Bar. Emergency manual control options
Operation method: To perform emergency operations, please press the button and
rotate it counterclockwise 180 ° before releasing it. The built-in spring will push the
button out. At this position, the valve may only partially move. To ensure complete
emergency movement, pull the button to its maximum travel and hold it in this
position. To restore normal valve function, press the button and rotate 180 °
clockwise before releasing. The emergency manual control option will be locked in
this position.
Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 |
soloenid valve |
| Type 2 |
manual cartridge valve |
| Type 3 |
2 way 2 position solenoid valve |
| Type 4 |
2 way 6 position solenoid valve |
| Type 5 |
2 way 8 position solenoid valve |
| Type 6 |
Pilot oil resource valve |
| Type 7 |
explosion proof valve |
| Type 8 |
balance valve |
| Type 9 |
check valve |
| Type 10 |
Hydraulic lock |
| Type 11 |
Valve manifolds |
| Type 12 |
valve block |
Welcome your visit and inquiry !
