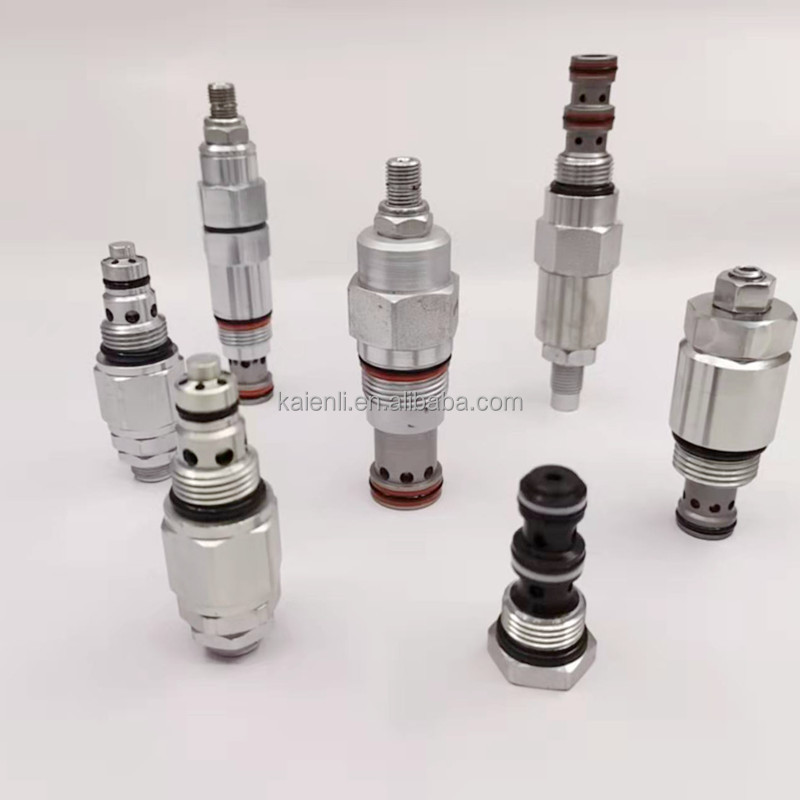

Product Pictures:
KSV10-23L-0-N hydraulic solenoid valve with 2 position 3 way oil control cut off valve of hydraforce cavity
Working principle:
When power is cut off, KSV10-23LP-0-N allows oil to flow in both directions from ②
to ①. When energized, the valve core closes, thereby stopping the flow of oil from
② to ①. In this mode, after overcoming the electromagnetic force (the required
pressure is 3.4 to 10.3 bar [50 to 150 psi]), the oil is allowed to flow from ① to ②.
Emergency manual control option operation method: To perform emergency
operation, please press and hold the emergency button
Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
