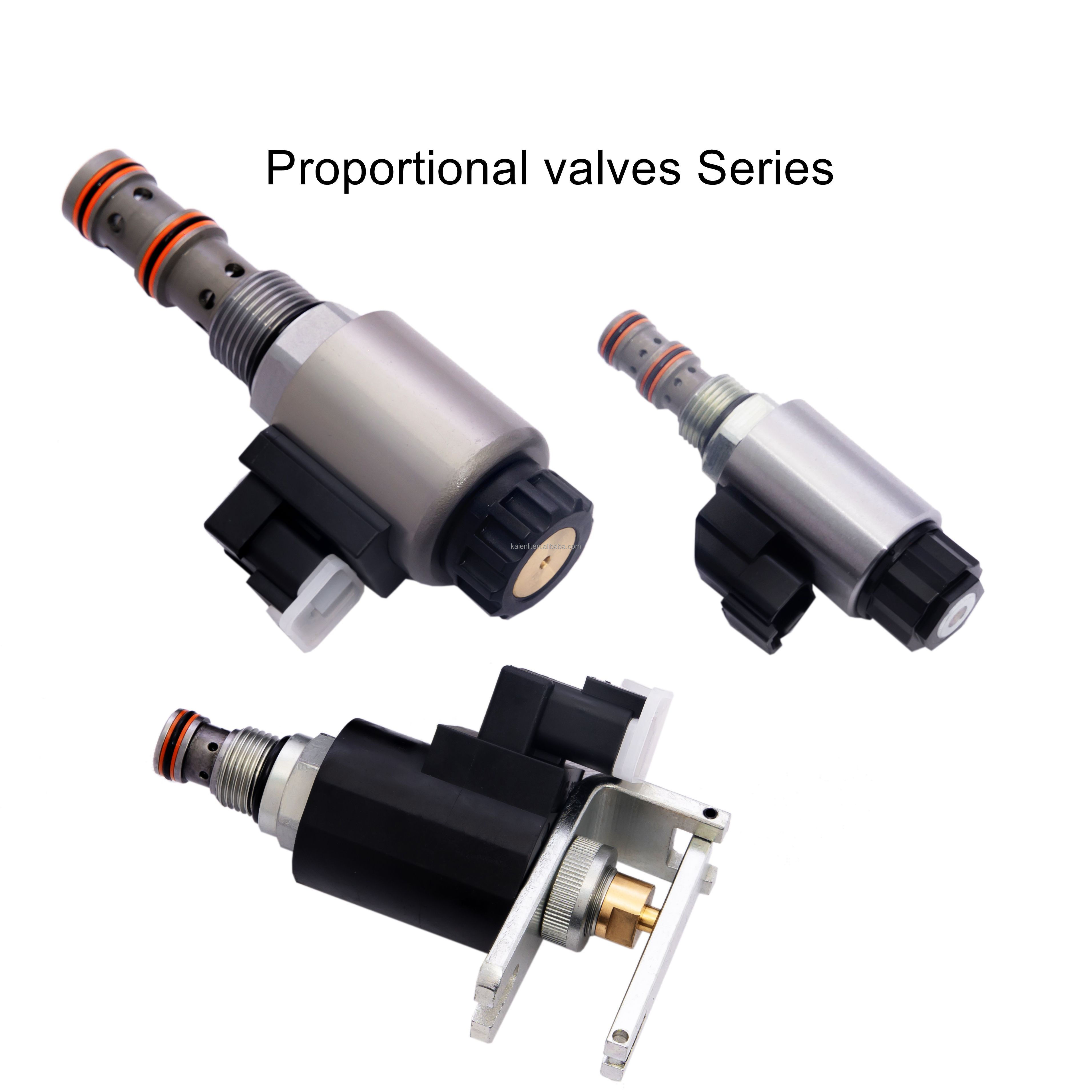

Product Pictures:
KPPCD05 with mounting hole pressure reducing proportional valve, hydraulic solenoid valve instead of Thomas
Technical parameters:
Rated pressure: P: 50 bar, T: 30Bar
Rated flow rate: 10L/Min, see performance chart
Internal leakage: When P=50 bar, non charged leakage: within 30ml/Min, charged leakage: within 60ml/Min
Voltage of coil: 12V corresponds to maximum control current: 1500mA, 24V corresponds to maximum control current: 750mA
Electrical interface: DT04-2P, waterproof grade: IP69K
Temperature range: -20 ℃ to 90 ℃, standard nitrile rubber seal
Response time: within 50ms, working frequency: 100Hz
Coil: Made of metal shell with good heat dissipation performance, with a continuous charged temperature of up to 90 ℃
Filter: 125um
Medium: Mineral oil with a viscosity between 7.4 to 420 CST (50 to 2000 ssu) or synthetic oil with lubricating properties
Valve hole: TC05013;
Product technical data:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
