Product Pictures:

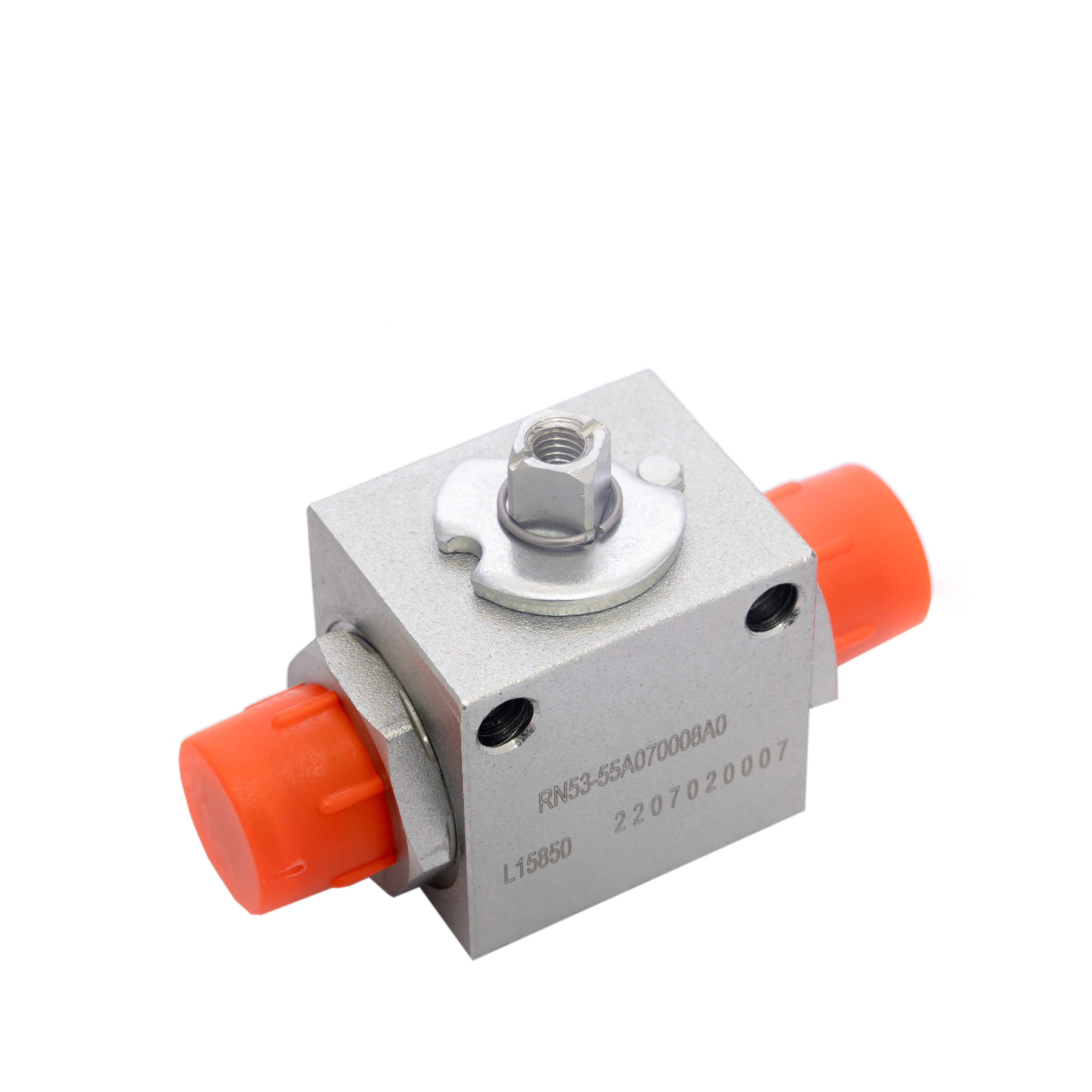

BKH straight ball valve with G1/2 G3/4 thread size, BHK type high pressure cut-off valves
Ball valve is the most used fluid shut off valve in upstream oil and gas production facilities, both on shore and off shore. They are also used in fuel gas systems feeding furnaces. Plug valves present the following advantages: Resistance to high pressure
Ball Valve, 2 Way 2B Series - 20,000 PSI high quality Chinese manufacture Ball Valve 2-Way VH2V-G 3/8" GW
BKH straight through high-pressure ball valve
VH2V series straight through high-pressure ball valve
BK3 three-way high-pressure ball valve
VH3V series straight through high-pressure ball valve
BKH-SAE high-pressure ball valve
HBKH straight through high-pressure ball valve
High pressure ball valve
Plate type two way ball valve
Design: Hydraulic ball valves typically have a compact design with a spherical ball inside a valve body. The ball has a through-hole (bore) that can be opened or closed by rotating the valve handle or actuator.
Flow Control: By rotating the ball, the hydraulic ball valve can be positioned to allow fluid to flow through the bore or to block the flow completely. When the bore aligns with the flow path, fluid can pass through the valve; when the bore is perpendicular to the flow path, the valve is closed, preventing fluid flow.
Full Bore or Reduced Bore: Hydraulic ball valves are available in full bore and reduced bore configurations. In a full bore design, the bore diameter is the same as the pipe diameter, allowing maximum flow capacity. In a reduced bore design, the bore diameter is smaller than the pipe diameter, which may restrict the flow to some extent.
Two-Way and Three-Way: Hydraulic ball valves can be classified as two-way or three-way valves. In a two-way ball valve, the flow is either on or off, with a single inlet and a single outlet port. Three-way ball valves have one inlet and two outlet ports, allowing for diverting or mixing of fluid flows.
Actuation: Hydraulic ball valves can be manually operated or actuated using various methods. Manual ball valves use a lever or a handle to rotate the ball. Actuated ball valves employ pneumatic or hydraulic actuators to automate the opening and closing of the valve.
Materials and Pressure Ratings: Hydraulic ball valves are available in a variety of materials, such as brass, stainless steel, or carbon steel, to suit different applications and fluid compatibility requirements. They are designed to handle a wide range of pressures, depending on the specific valve design and construction.
Product catalogue reference:
Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
