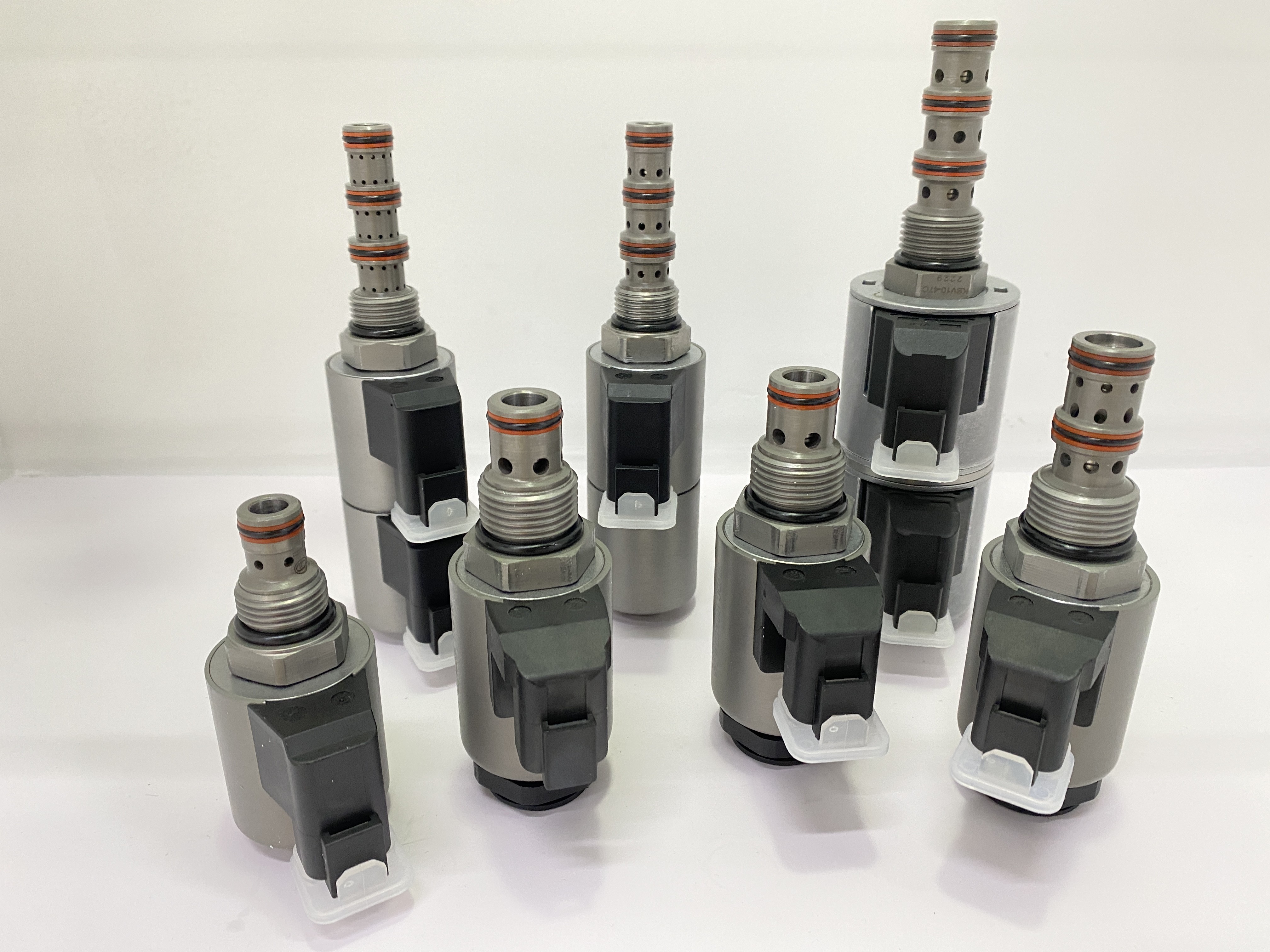

Product Pictures:
KSV12-24-0-N excavator hydraulic solenoid valve , VC12 cavity hole with threaded solenoid valve for hydraulic system
Characteristics:
Working pressure: 315 bar. 1 port pressure: 250Bar
Pressure resistance: 350 bar (5075 psi)
Rated flow: 76 L/Min,
Leakage volume: When the working pressure is 250bar, the leakage volume is within 400ml/Min
Temperature range: -40°C to 120°C, standard butadiene rubber seal
Coil power: 30W, voltage 12V output current 2.5A, voltage 24V output current 1.25A
Medium: Foam hose 7.4~420cSt (50~2000ssu) mineral oil or synthetic oil with lubricating effect
Valve hole: VC12-2
Features:
● Rated solenoid coils are suitable for continuous operation.
● The valve core and valve sleeve are hard-treated and durable.
● Optional coil voltage and termination.
● High-efficiency wet armature structure.
● All ports can be fully pressurized.
● Plug-in voltages are interchangeable.
● Emergency manual control option.
● Optional IP69K waterproof E-type coil.
● Integral molded coil design.
● Industrial universal valve hole.
Product technical data:

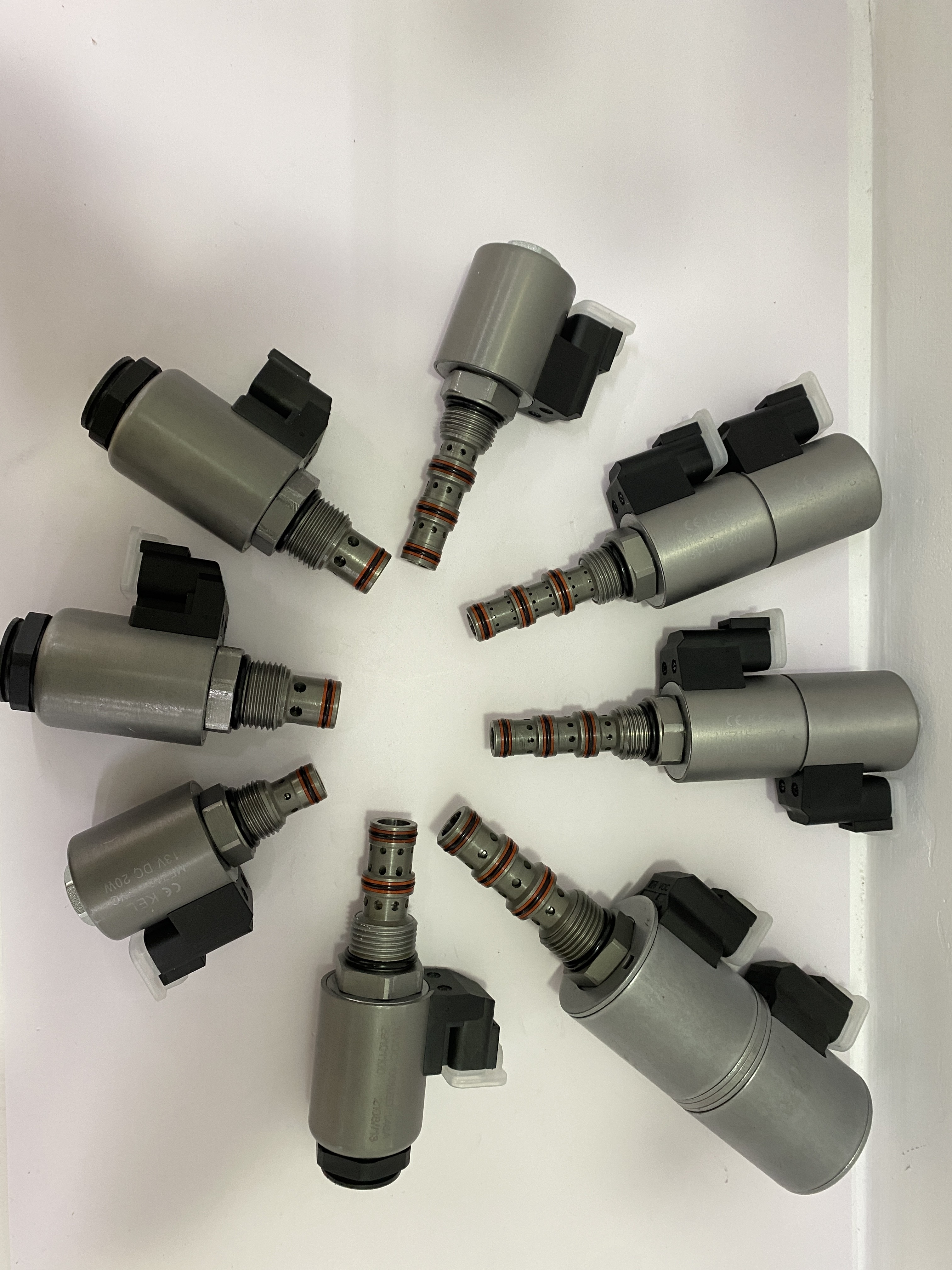

Product real pictures :
Company Exhibitions:
Our Certificate:
Product processing procedures:
Our new factory and workshop :
Our warehouse:
Shipment:
Different Series of Product , more details please contact us directly:
Hydraulic valves:
| Type 1 | soloenid valve |
| Type 2 | manual cartridge valve |
| Type 3 | 2 way 2 position solenoid valve |
| Type 4 | 2 way 6 position solenoid valve |
| Type 5 | 2 way 8 position solenoid valve |
| Type 6 | Pilot oil resource valve |
| Type 7 | explosion proof valve |
| Type 8 | balance valve |
| Type 9 | check valve |
| Type 10 | Hydraulic lock |
| Type 11 | Valve manifolds |
| Type 12 | valve block |
Welcome your visit and inquiry !
